Futaba  |  Artikelnummer: EBB0141 Producent varenr.: EBB0141  |  EAN: 4513886306372

Cable External Volt R7003SB, R7008SB & R7018SB (CA-RWIN-700)

109,00 kr

Få prismatch på Cable External Volt R7003SB, R7008SB & R7018SB (CA-RWIN-700)

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 4-6 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

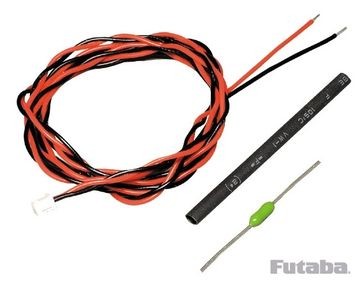

This is the Futaba CA-RVIN-700 External Voltage Input Cable.

FEATURES
  • Used to connect a Futaba telemetry equipped receiver to an extra voltage port.
INCLUDES
  • Cable, Fuse, Heat Shrink Tube and Instructions
SPECIFICATIONS
  • Length: 700 mm
COMMENTS
  • This voltage cable plugs into the R7008SB next to the antenna.
  • This measures the external voltage, such as the battery that is running a motor. The voltage will be displayed in the transmitter as "EXT-VOLT".
  • Maximum voltage is 70 volts.
  • Cable should be cut to desired length, then remove & save 30mm from the positive black line. Next, solder the fuse inline on the positive wire and reattach the section of wire that was previously removed and solder into place. The fuse should be attached as close to the external power supply as possible. Place shrink tubing over the fuse and cover all sodered areas. Shrink the tubing onto the wire with a heat gun. The cables will then be connected to corresponding + & - wires that connect the ESC to the battery and attached using solder and shrink tubing.
