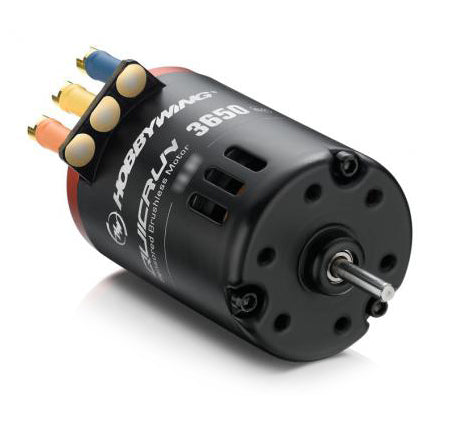

Motor QuicRun 3650SD 21.5T G2

Hobbywing 30404307 - Motor Quickrun 3650SD 21.5T G2

Features

• Sensored brushless design for smooth and linear throttle control.

• Removable and serviceable structure – easy to clean, repair, or replace rotor, bearings, and sensor module.

• Precision-balanced rotor for high efficiency and reduced vibration.

• Dustproof design around the output end to improve durability.

• Lockable, gold-plated connectors for reliable solder-free connections.

• Silicone O-ring between end bell and stator for improved heat dissipation.

• Compatible with standard sensored ESCs; supports sensor cable connection.

• Plug-and-play with pre-soldered 3.5 mm bullet connectors.

Specifications (QuicRun 3650SD G2 – 21.5T, HW30404307)

• Turns (T): 21.5T

• KV Rating: 1800 KV

• LiPo Cells: 2S–3S

• Resistance (Ω): 0.0747 Ω

• No-load Current: 1.3 A

• Max. Output Current: 28 A

• Max. Output Power: 95 W

• Rotor Diameter: 12.5 mm

• Shaft Diameter: 3.175 mm

• Outer Diameter: 36 mm

• Length (w/o shaft): 52.8 mm

• Weight: 186 g

• Mounting Screw Size: M3, depth ≤ 5 mm

• Operating Temperature Limit: ≤ 90 °C (194 °F)
