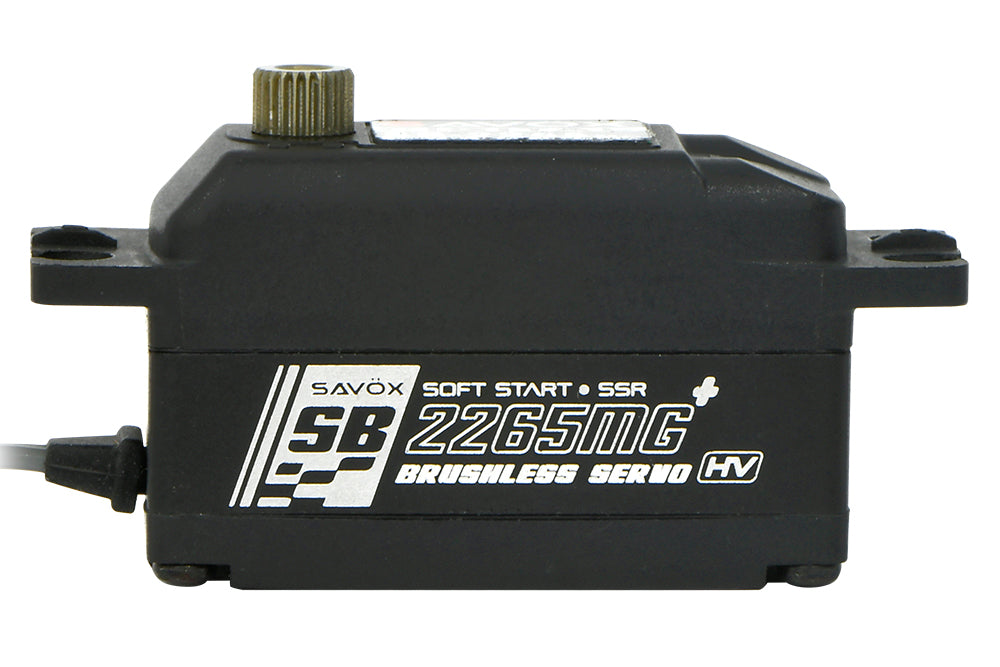

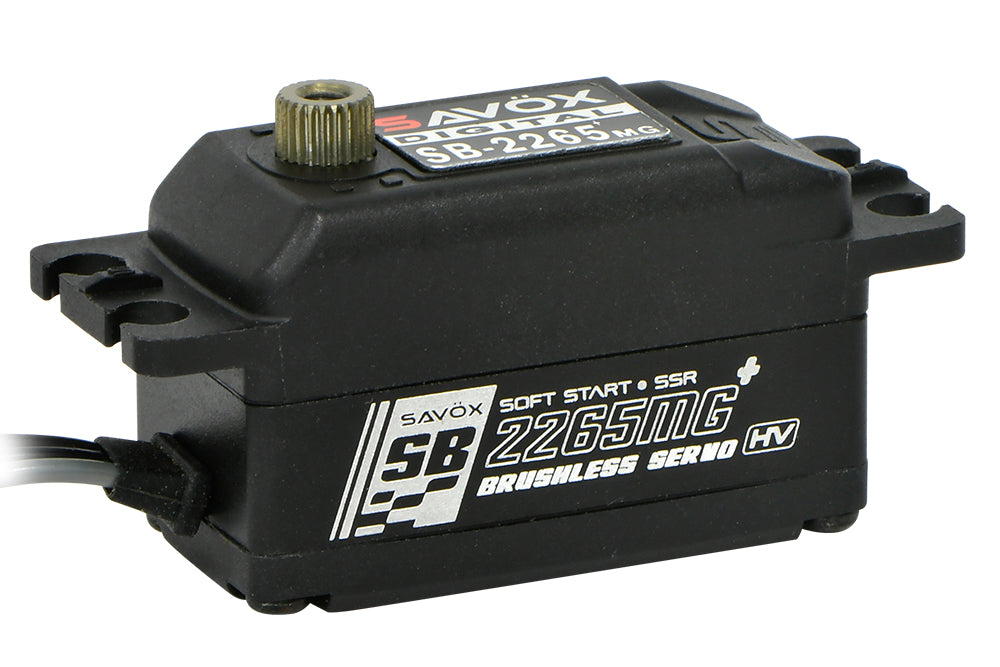

SB-2265MG Plus Servo 13Kg 0,08s HV Brushless Metal Gear Low

Product Info:



Discover the SB-2265MG+ in Detail
Curious about what makes the SB-2265MG+ stand out? In this video, Andy from Team Savox walks you through all the key features of this advanced low-profile brushless servo. From its high-voltage capability to its upgraded wiring and blazing-fast response, you’ll get an inside look at why it’s a top choice for competitive 1/10 on-road racers.

Designed as a high-performance evolution of the 2263, the SB-2265MG+ offers more torque, a longer 20cm cable, and full compatibility with Sanwa SSR & Futaba UR/SR for ultra-fast signal response. Whether you’re building a new chassis or simply want more power in a compact servo, this is the one to watch.

Black Edition
A sleek, all-black design applied to our most trusted servo platforms. Black Edition models take the proven internals from other Team Savox lines and wrap them in a clean, stealthy finish.

Perfect for clean builds, custom chassis, or anyone who wants standout performance with low-profile styling. Same power - just darker.

Specs:

• Line: BLACK EDITION
• Application: CAR / AIRPLANE
• Servo Size: Low Profile
• Operating Voltage: 6.0V-8.4V
• Speed @ 6.0V: 0.1s/60°
• Torque @ 6.0V: 10kg/cm
• Speed @ 7.4V: 0.08s/60°
• Torque @ 7.4V: 13kg/cm
• Speed @ 8.4V: 0.07s/60°
• Torque @ 8.4V: 17kg/cm
• Amplifier Type: Digital Controller
• Motor Type: Original Brushless
• Case Type: Hybrid (Aluminum/Composite)
• Protection: Water Resistant

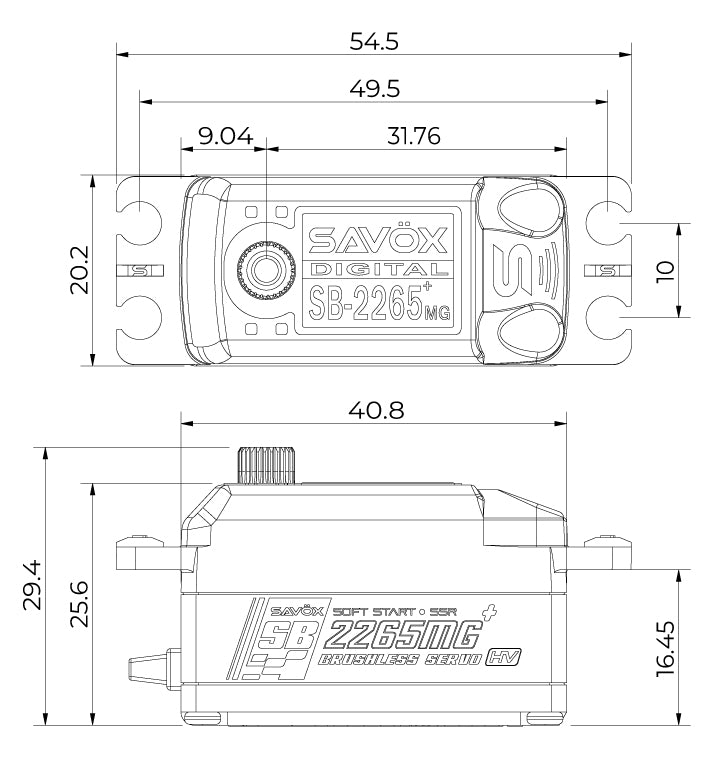

• Size (LxWxH): 40.8x20.2x25.6mm
• Weight: 50g

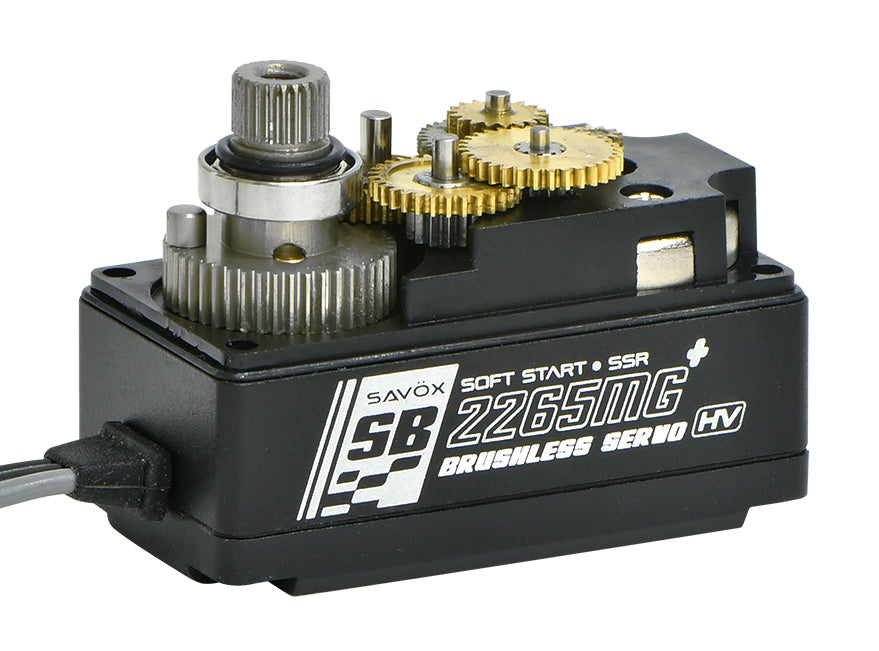

• Gear Type: Heavy-Duty Metal
• Compability: Sanwa SUR, SSR; Futaba UR, SR
• PCB Board: 32-bit
• Horn Gear Spline: 25T (Φ6)
• Rotating Direction: Counterclockwise (when 1000→2000 μsec)
• Max Travel: ~130° (when 900→2100 μsec)
• Operating Travel: 90° (when 1000→2000 μsec)
• Neutral Position: 1500 μsec
• Bearing: 2x Ball Bearings
• Potentiometer: VR
• Cable Diameter: 22AWG
• Cable Length: 200mm ±5
• Connector: JR
• Stall Current @ 6.0V: 5000mA
• Operating Current @ 6.0V: 200mA
• Stall Current @ 7.4V: 6000mA
• Operating Current @ 7.4V: 220mA
• Stall Current @ 8.4V: 7000mA
• Operating Current @ 8.4V: 250mA
• Idle Current: 5mA
• Dead Band Width: 3-5μsec
• Frequency Range: 50-360Hz
• Control System: Pulse width modification
• Operating Temperature: -10°C to 50°C
