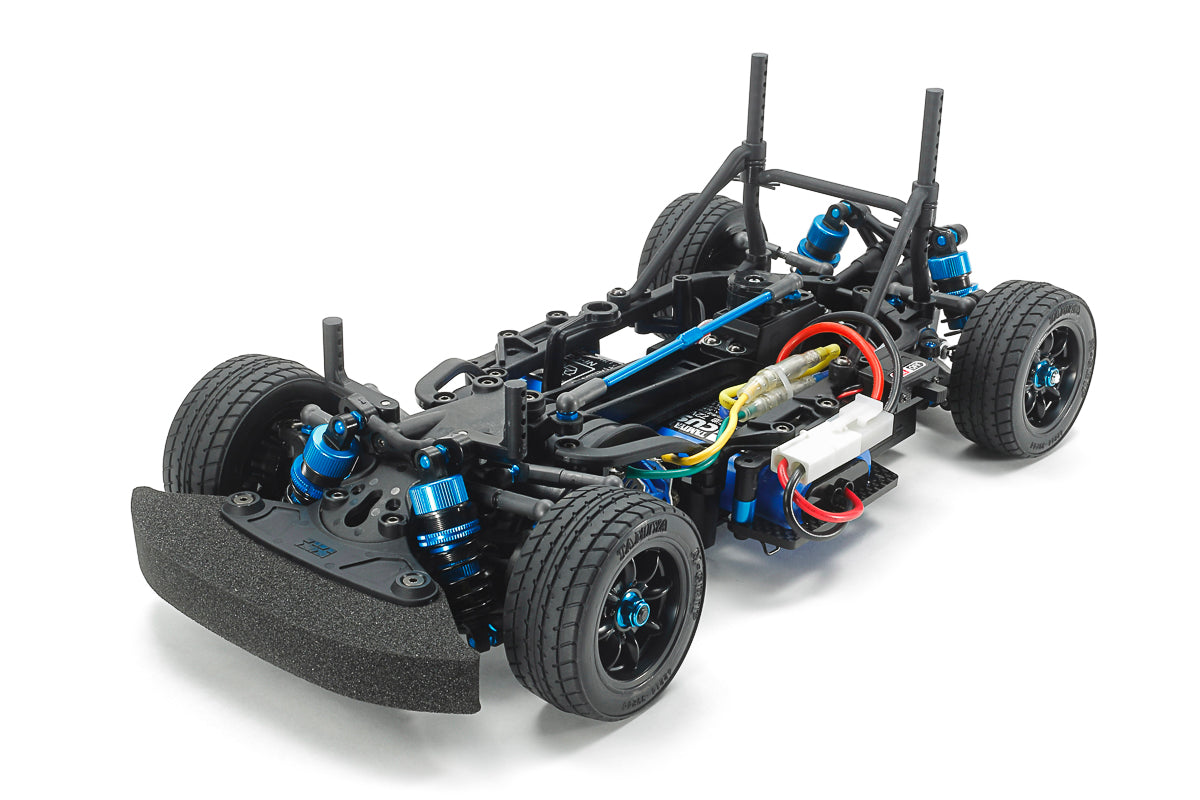

1/10 R/C M-07R Chassis Kit
Re-Issue / Limited Edition
The Hopped-Up M-07R This R/C FWD chassis assembly kit takes the cutting-edge M-07 Concept chassis and pairs it with a range of Tamiya Racing Factory (TRF) hand-picked option parts for a racing setup. It features a high-traction lower deck for a ground-hugging drive, plus carbon fiber battery holders, TRF special dampers, reinforced suspension arms and uprights, as well as rear stabilizer.
The result is super grip, even on low-traction surfaces. An efficient drivetrain includes oil-filled gear differentials, full ball bearings, double cardan drive shafts, aluminum cup joints, hard coated aluminum pinion gear and more.
M-07R Chassis Kit Tech Spec Images
 |
 |
 |
|

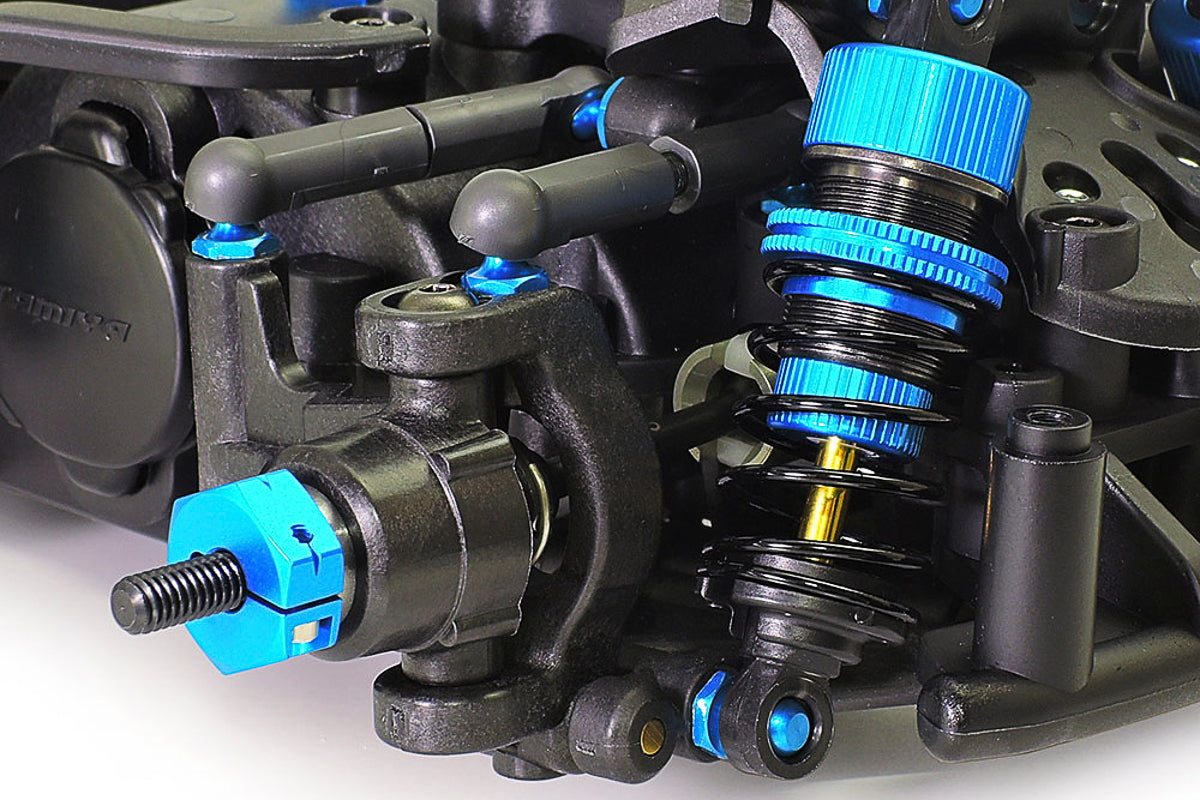

A close-up on the smooth front suspension, with TRF Special Dampers, double-cardan shafts and more! |

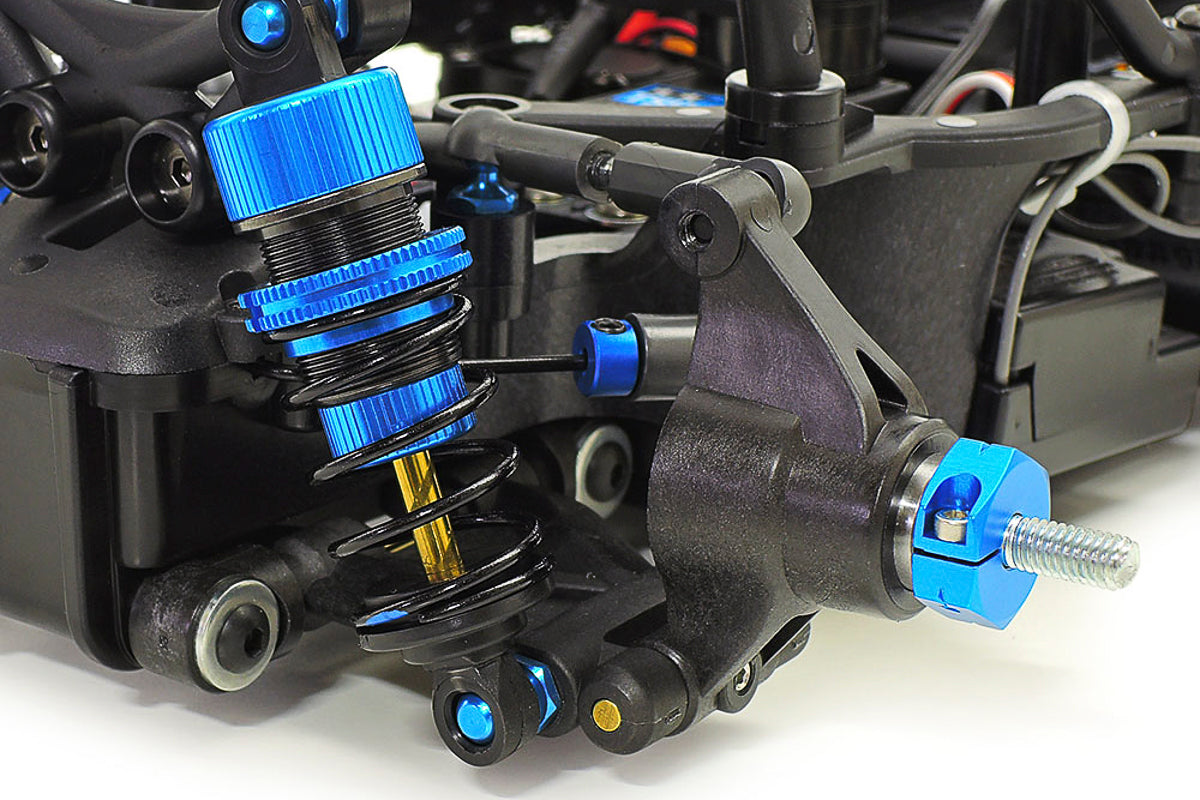

Reinforced suspension arms and uprights give great durability. The kit includes a rear stabilizer. |
The high-traction lower deck was made to extract just the right amount of flex, for great road holding. |
|
Separately Required Items
|
Featured Components

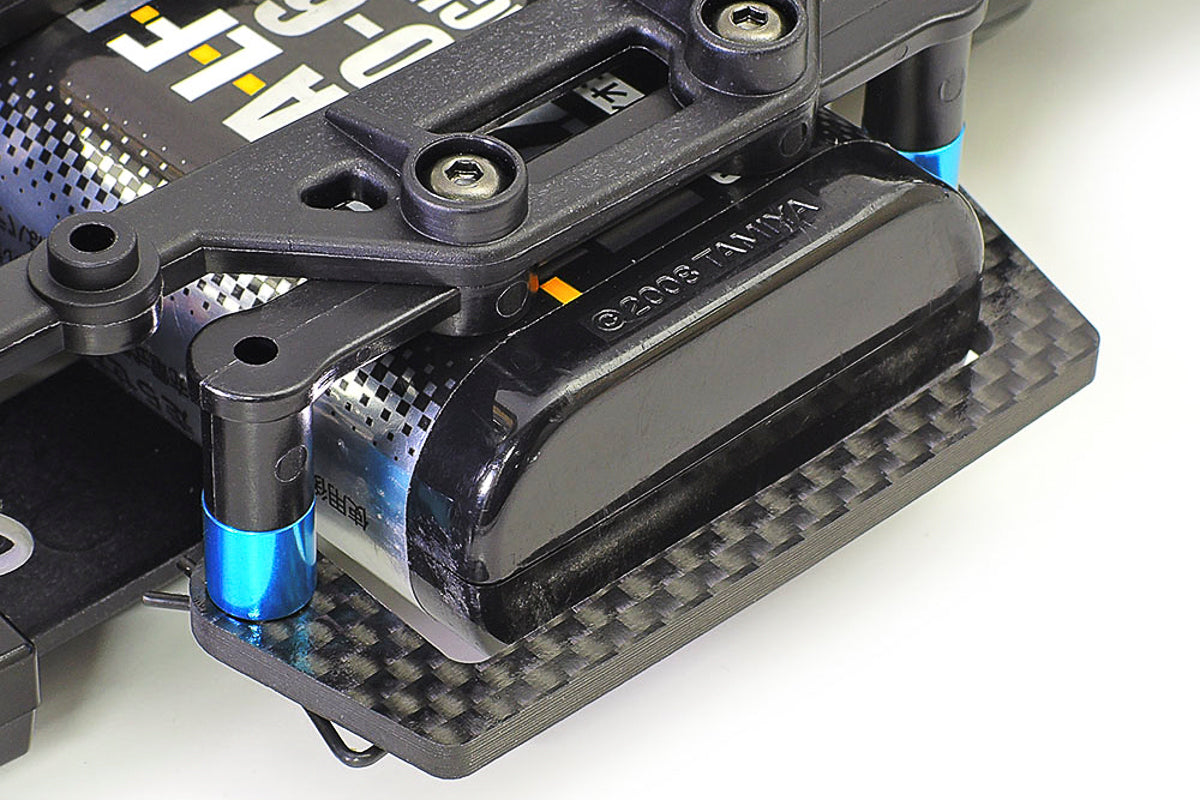

- Carbon fiber battery holder*
- Rear stabilizer
- TRF special dampers (hard black coating)
- Double-cardan drive shafts (33mm)
- High-traction lower deck
- Reinforced C parts (uprights)
- Reinforced D parts (suspension arms)
- 3x106mm aluminum turnbuckle shafts
- Aluminum joint cups
- Clamp-type aluminum wheel hubs (5mm)
- 2.6mm diameter titanium-coated shafts
- 46mm titanium-coated shafts
- 06 module aluminum pinion gear (20T)
- Full ball bearings
- Hi-torque servo saver (black)
- *dedicated component
Specifications
- Length: 332mm (including bumper)
- Width: 164mm
- Wheelbase: 225mm or 239mm (Selectable)
- Monocoque Frame
- Front-Midship Motor, Front-Wheel Drive
- Oil-Filled Gear Differential
- 3-Piece Steering Tie-Rod
- 4-Wheel Independent Double Wishbone Suspension
- TRF Special Dampers
- Gear Ratio = 5.78:1 using included 20T pinion gear (7.22:1 - 4.81:1 available with separately sold pinion gears)
- Requires an Electronic Speed Controller (sold separately)
