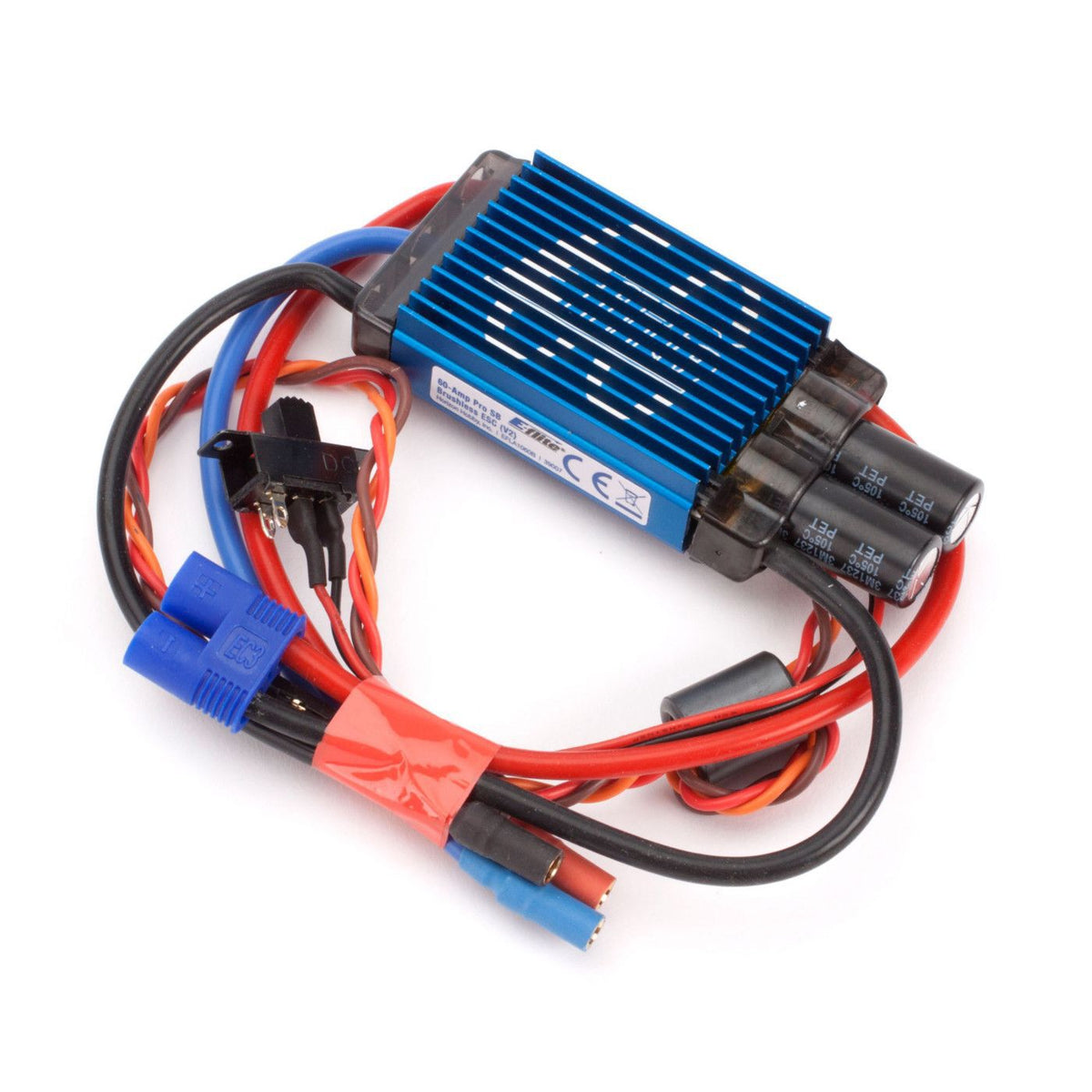

60-Amp Pro Switch-Mode BEC Brushless ESC (V2)

Key Features

• Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)
• 5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)
• Stronger BEC for support of most 3-axis stabilization systems
• Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
• 3- to 6-cell Li-Po, 9 to 18-cell Ni-MH/Ni-Cd input voltage
• Finned heat sinks
• Programmable motor braking
• Safe power-arm mode prevents accidental starts
• Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage
• Programmable throttle input range (1.1ms-1.9ms or 1.2ms-1.8ms)
• Programmable soft start for helis and airplanes
• Auto motor shut down if signal is lost or there is interference
• Programmable timing—5 user-selectable ranges for use with a large variety of brushless motors
• Utilizes new smaller MOSFET technology to minimize weight
• Radio system power on/off switch
• Pre-wired connectors—E-flite® EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads

Overview

The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.

If you are purchasing this ESC to replace the ESC in your Carbon-Z Cub SS (EFL12450/EFL12475) or the Carbon-Z Cessna 150 (ELF1450/EFL1475) you will need the DYNC0029 adapter
