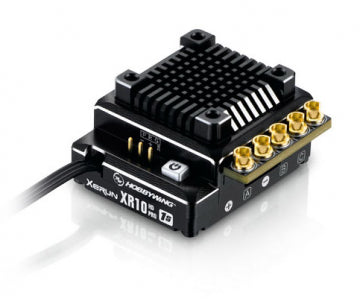

Hobbywing 30112609 - XeRun XR10 Pro 1S V4.1 ESC

XeRun XR10 Pro 1S Heavy Duty Racing ESC

Special Design for 1/12 th Scale Top Racing
Reliable hardware combined with great software (contains 5 common ready-to-use profiles) creates an ideal power solution to 1/12 th scale top touring car racing.

High reliable heat dissipation system
Internal power board covered with copper heat conducting confluence strip which is HobbyWing’s patent technology. The strip is convenient for transferring the internal heat rapidly to an integrated shell radiator, together with a high-speed heat dissipation fan, which build a high reliability heat dissipation system, to ensure the ESC is always in the best state of heat dissipation.

Super BEC
Internal BEC features booster circuitry can output the current/voltage of up to 6A/6V and power various servos without connecting any extra receiver battery.

Built-in Electronic Switch & Capacitor Module
Built-in electronic switch (with a lifespan of over 50000 on/off cycles, housed in a completely waterproof, dust-proof and shock-resistant design) and capacitor module save space and make the wiring simple and neat.

Programming/Upgrading/Data Reading Wirelessly
With Hobbywing’s “WiFi Express” module and iPhone or an Android phone (with the HOBBYWING WiFi Link software installed), the user can remotely program parameters, upgrade firmware and check relevant data of the ESC without leaving the control stand.

Adjustable Throttle & Brake PWM Frequencies
Independent and adjustable throttle & brake PWM frequencies guarantee precise and accurate throttle and brake control for all classes of competitions (especially the Stock class).

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LCD program box or WiFi module for ESC programming.

Innovative Data-logging Function
This ESC features the data-logging function which can record the maximum ESC/motor temperature, RPM and etc. in real time and allows users to check those data via a LCD program box to analyze.

Specifications:

• Type: 1/12 scale on-road
• Brushless / Sensored
• Waterproof: No
• Continuous /Peak Current: 120A/830A
• Input Voltage: 1S Lipo/3-4 Cell NiMH
• BEC Output: Switch Mode: 6V/3A

Wires & Connectors:

• Input Wires: 12AWG/200mm
• Output Wires: 12AWG/200mm & 14AWG/200mm
• Input Connectors: No
• Output Connectors: No

ESC Programing:

• SET Button on ESC: Not Supported
• LED Program Box: Not Supported
• LCD Program Box: Supported
• WiFi Module: Supported
• Program Port: Separate Program Port
• Firmware Upgrade: Supported

Size & Weight:

• Size: 37.5 x 31 x 31 mm
• Weight: 46.7 g

Applications:

• Motors: Sensored Brushless Motors
• Vehicles: 1/12 scale Pan Cars
• KV Rating/T Count: 1S LiPo: =3.0T (* ESC in Zero-timing/Blinky Mode)
