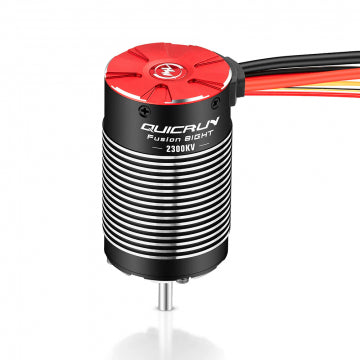

Hobbywing 30120404 - QuicRun Fusion 8IGHT 2300kV w/ Integrated ESC 80A

Hobbywing HW30120404 - QuicRun Fusion 8IGHT 2300kV Intergrated ESC 80A

• Enhanced Low-Speed Torque: The FOC driving mode optimizes torque for rock crawling, providing smoother, more controlled performance on challenging terrain.
• High Efficiency & Reduced Heat: High-efficiency operation reduces heat buildup, leading to longer runtimes and quieter motor performancecompared to traditional systems.
• IP67 Waterproof Protection: With an IP67 protection rating, this system ensures reliable, all-weather performance, even in wet and muddy conditions.
• Intelligent Torque and Speed Control: Active torque output adjustment and speed closed-loop control enable precise handling for better vehicle responsiveness on inclines and uneven surfaces-
• Superior Holding Power: The active drag brake force adjustment provides enhanced holding power on inclines, offering consistent and controlled braking.
• Built-In Switch Mode BEC: The system features a strong built-in BEC, delivering 6A continuous and 13A peak current, with adjustable voltages (6V, 7.4V, 8.4V) to power high-torque servos and accessories.
• Real-Time Drag Brake Adjustment: Real-time adjustment of the drag brake force is possible via your transmitter’s AUX channel, allowing on-the-fly tuning for varied driving conditions.
• Multiple Protection Features: Equipped with low battery, overheat, throttle loss, and lock-up protections, ensuring safe operation in demanding environments.
• Compatible with Program Boxes: Easily adjust ESC parameters using the LED or LCD Program Box Pro/G2, streamlining configuration and setup.

• Scale: 1/8
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensored
• Waterproof: Yes
• Cont./Peak Current: 80A/240A
• Input Voltage: 2-4S LiPo,6-12 Cells NiMH
• BEC BEC Output: 6V/7.4V/8.4V adjustable,continuous current 6A (Switch mode)
• KV: 2300KV
• Motor Poles: 4
• Input Wires: Black-13AWG-250mmx1 Red13AWG-250mmx1
• Input Connectors: XT60
• ESC Programing via SET Button on ESC: Not Supported
• LED Program Box: Supported
• LCD G2 Program Box/LCD PRO: Supported
• OTA Programmer: Not Supported
• Program Port: Independent programming port(switch position)
• Firmware Upgrade: Not Supported
• Diameter / Length of motor: 42mm/69mm
• Shaft diameter / exposed shaft length: 5mm/18.5mm
• Weight: 338 grams(including wires&connectors)
• Vehicles: 1/8 Rock Crawlers
