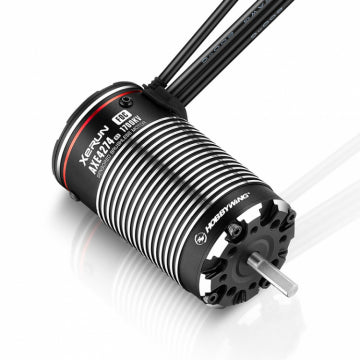

Hobbywing 30401400 - Motor XeRun AXE4274SD R3 2000kV

Hobbywing HW30401400 - AXE 4274SD R3 2000kV Crawler Motor

6S high power, for crawlers

• The XeRun AXE R3 motor supports up to 6S LiPo
• Compared to the R2 motor, the maximum output power is increased by 106% and is 11% more efficient
• Note: The default mounting hole is 25.4mm. Please purchase the AXE 4274 motor conversion board if the mounting hole is 30mm.

Two KV options, wide application

• AXE 4274 R3 is available in both 1700/2000KV options.
• It meets various application requirements for 1/8, 1/7 and 1/6 scale crawlers.

Excellent protection
The AXE R3 motor is now IP67 protected. The motor has the proven Hobbywing water proof sensor harness design to cope with complex and various climatic conditions.
Note:
The above-mentioned IP67 protection level is splash-proof, water-resistant, and dust-proof under normal use. It is not permanently effective, and the protective performance may decrease due to aging. Extended water exposure (submersion) may lead to damage.

Precision Magnetic sensor
The motor has a built-in magnetic encoding sensor. The accuracy 60 times better compared to the traditional sensor commonly used in brushless motors. The three-phase signal has excellent consistency and it provides accurate signals from the rotor position.

Supports optional motor adapter, strong compatibility
The XeRun AXE R3 motor is built-in with 4 sets of 25.4mm mounting holes, and 4 for M3/M4 respectively. If the frame mounting holes are 30mm, an optional motor mounting conversion plate is available for purchase.

Specs:

• 1/8-1/6, Brushless, Sensored Crawler Motor
• Pole Count: 4
• KV Rating: 2000kV
• LiPo Cells: 3-6S
• No-load Current: 4.5A
• O.D.: 42mm
• Length: 74mm
• Shaft Diameter: 5mm
• Plug: No
• Wire: 12AWG-250mm
• Weight: 415g
• ESC: XeRun AXE PLUS R3
• Vehicles: 1/8-1/6 Rock Crawlers
