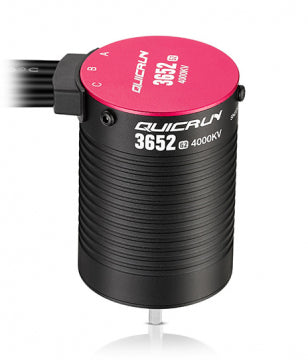

Hobbywing 30404401 - Motor QuicRun 3652SL 4000kV G2 Sensorless 1/10 (3.17mm Shaft)

Hobbywing QuicRun 3652SL G2 Sensorless Brushless Motor - 4000KV / 3.175mm Shaft

Explosive Output Power
The output of the motor is powerful and explosive. Taking 3652-3250KV as an example and comparing it with the same specification; there is more than 10% increase in maximum output power!

Excellent performance, temperature is lowered
The motor efficiency is significantly higher when comparing it with the same specification. Taking 3652-3250KV as an example, the efficiency of the rear section is 8% higher & motor temperature is lower under the same load conditions.

Explosion-improved rotor design - strong and reliable
The rotor is designed with front and rear aluminum end plates, which greatly improves the overall balance. At the same time, the rotor is wound with high-strength tensile materials and has strong explosion-proof ability.

Detachable design for easy maintenance
The motor adopts a modular detachable structure design, which is convenient for routine cleaning and maintenance, effectively prolonging the service life of the motor and maintaining the working efficiency of the motor.

Specs:

• Type: 1/10, Brushless, Sensorless
• Poles: 4
• KV Rating: 4000
• LiPo: 2-3S
• No Load Current: 5.3A
• OD: 36mm
• Length: 52mm
• Shaft Diameter: 3.175mm
• Shaft Length: 15mm
• Connectors: 4mm male
• Weight: 224g
• Front Bearing: OD13xID5xT4mm
• Rear Bearing: OD13xID5xT4mm
• Applications: 1/10 On-road, 2WD Buggy & 2WD Truck (light loads)
