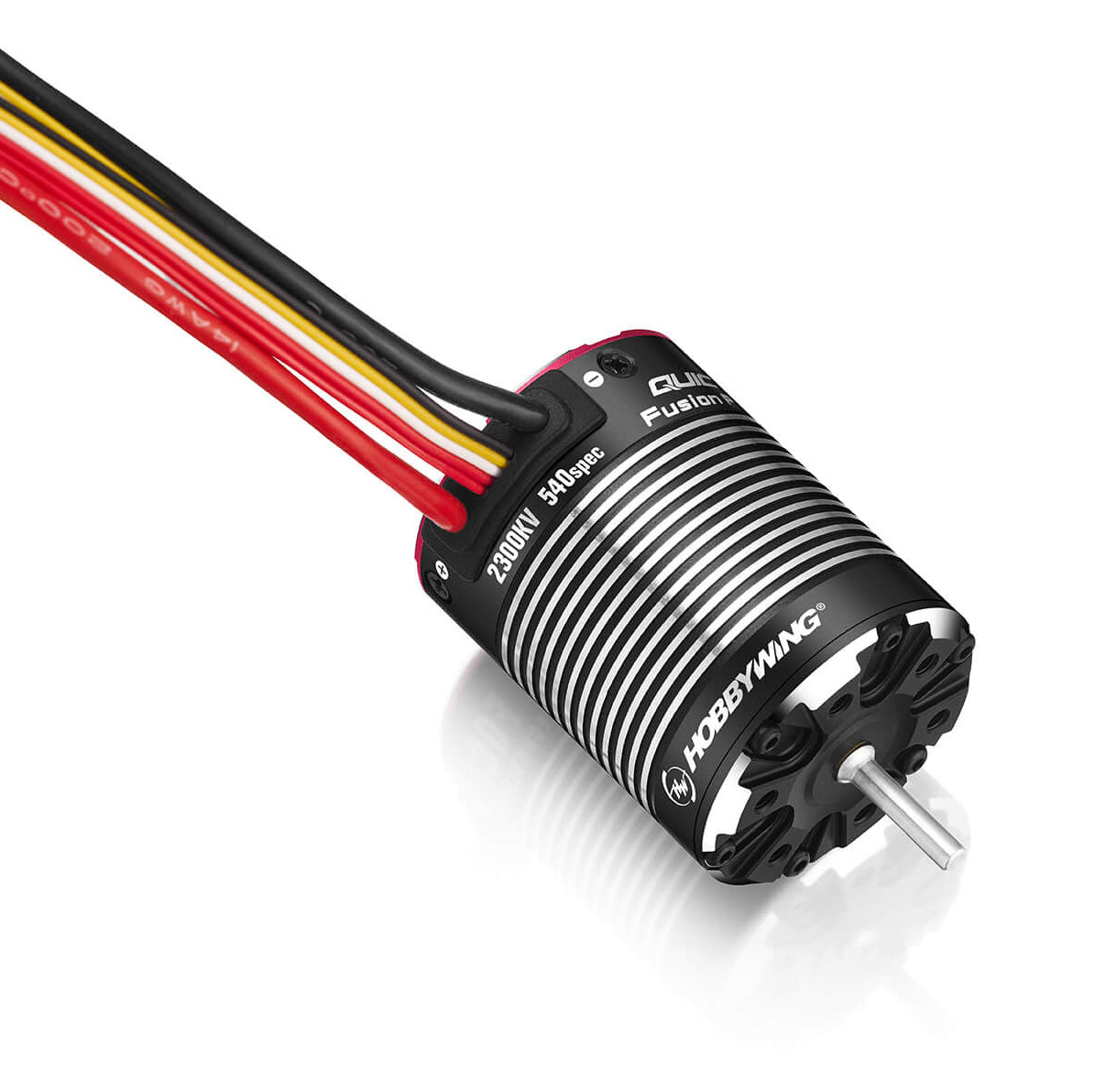

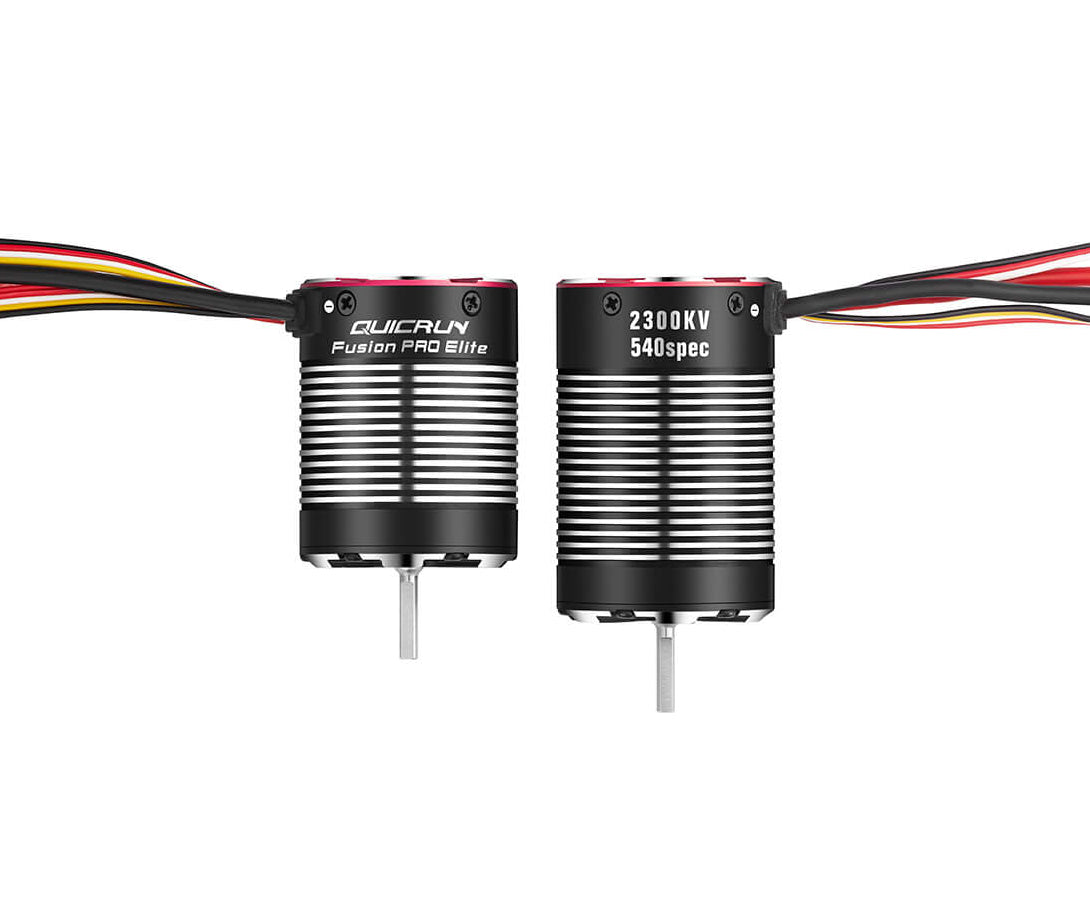

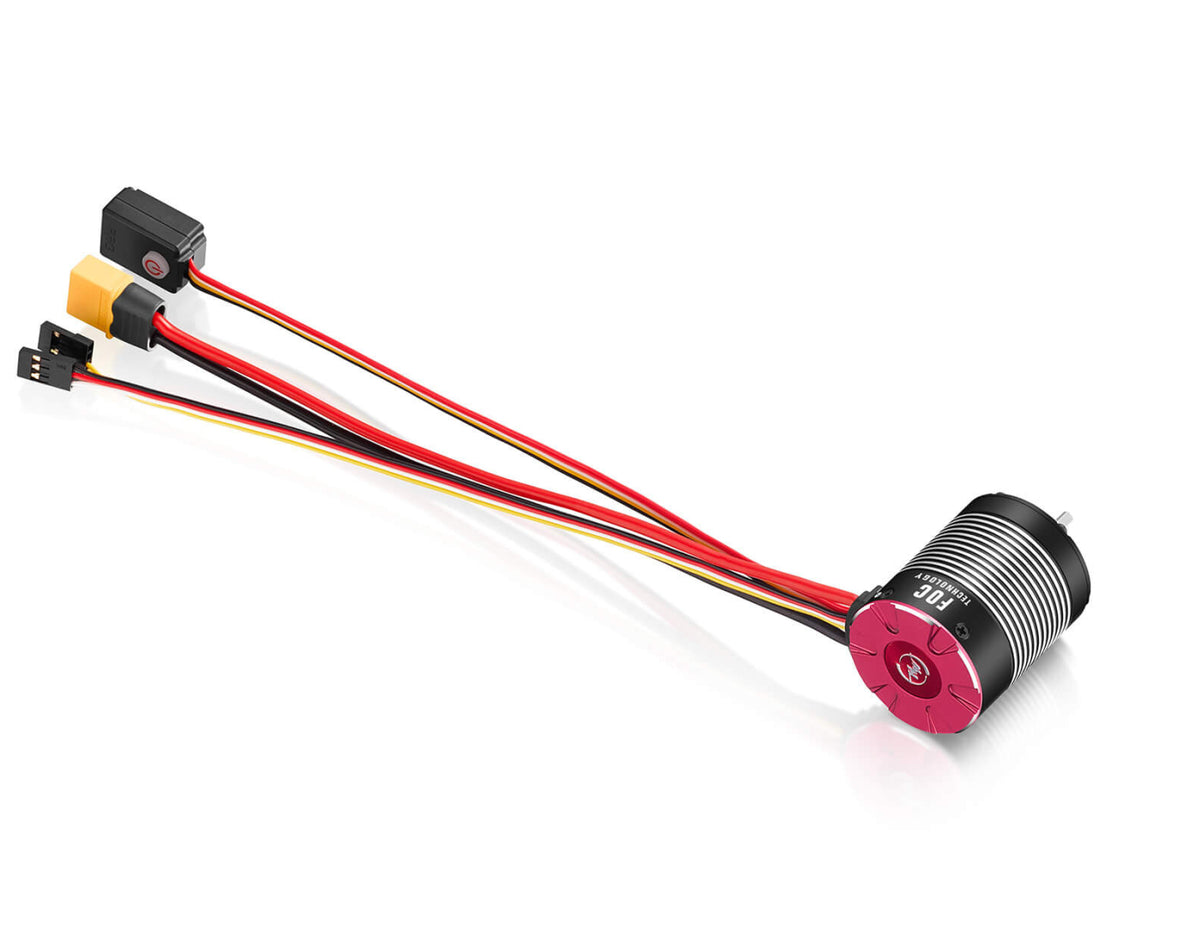

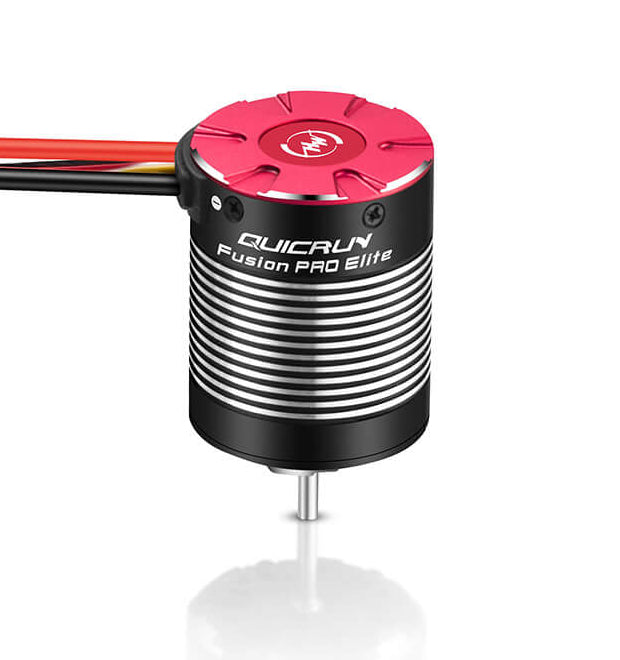

QuicRun Fusion Pro Elite 2300kV w/ Integrated ESC 60A

Overview
The QuicRun Fusion Pro Elite is a compact, high-performance 2-in-1 brushless power system that integrates the ESC and motor in one unit. Specifically designed for 1/10 scale crawlers, it features advanced FOC (Field Oriented Control) technology to deliver strong torque at low speeds, smooth throttle control, and quiet operation. The ultra-short design (only 48.5 mm long) allows clean and easy installation in most crawler chassis.

Key Features

• Integrated ESC + motor design for a simple, clean installation.

• FOC control ensures ultra-smooth throttle response, high low-end torque and excellent efficiency.

• IP67 waterproof and dustproof design for reliable performance in rain, snow, mud or sand.

• Intelligent torque and closed-loop speed control automatically adjust output during climbs and descents.

• Real-time parameter tuning via AUX channel from your transmitter.

• Supports multiple operation modes including constant speed, forward/reverse, and hybrid settings.

• Programmable through SET button, LED Program Box or LCD Program Box.

• Fourteen adjustable parameters including running mode, LiPo cell count, cutoff voltage, thermal protection, motor rotation, BEC voltage, drag brake strength, and punch control.

Technical Specifications

• Continuous current: 50 A

• Peak current: 150 A

• Input voltage: 2–4 S LiPo

• Built-in BEC output: selectable 6 V / 7.4 V / 8.4 V

• Waterproof rating: IP67

• Length: 48.5 mm

• Outer diameter: ≈ 37 mm

• Shaft diameter: ≈ 3.175 mm

• Weight: ≈ 178.5 g

• Application: 1/10 scale crawler vehicles
