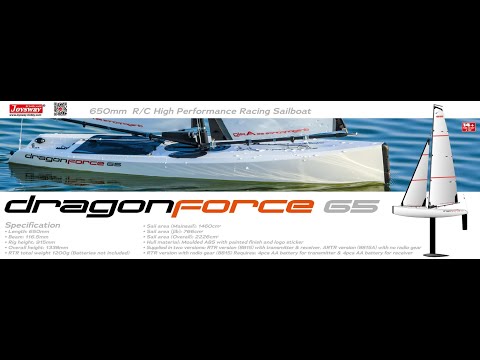

Joysway 8815V8 PNP - Sailboat Dragon Force 65 V8 PNP

Joysway JW8815V8PNP - Dragon Force DF65 Version 8 Sailboat PNP

The new updated (8:th version) Dragon Force 65 sailboat. The DragonForce 65 has undergone a major transformation to bring the quality and appearance up the high standard set by its bigger brother the DragonFlite 95, without affecting the competitiveness of previous versions. This truly is a stunning and race winning boat - straight out of the box!

DF65-V8 Updated items:

• Servo tray screws are replaced with flat head screws
• Servo tray is modified with larger the mounting holes & secure the mounted plate with screws from top of servo tray.
• New switch mounting plate - now sailors can replace the power switch from top of the servo tray, no more disassembly of the servo tray to replace the switch
• Modified dimensions of the black hatch cover patch and battery cover patch
• New molded rudder servo arm (reinforced)
• Improved rudder metal arm, the hole which fit with clevis change from 2mm diameter to 1.9mm diameter, this change will make sure rudder well fitness, minimize the left and right clearance.
• Two bearing change to 404 stainless steel material
• Modified mast stub and mast joiner with tube at outer diameter of 4.97mm so to improve the fitness. The whole mast unit will have better curve under tension.
• Mainsheet Bridle Plate modification - reinforced, thicker & stronger
• Mast deck sliding plate, modified mold:Width from 19.3 to 19.8mm, stop mast deck plate sideways wobble by tighter fit with keel box top molding
• Mast deck plate positioning nut, change the way to glue it in position well. Prevent nut drop out from keel box.
• Screws, nuts, washers for the mast deck plate, screws for keel - all change to 316 stainless steel
• Jib boom rear plug, changed design, cord can be thread through outside, easy for change the jib boom lifting cord
• DF65 sails clew hook 0.6 change to 0.8mm
• Main sail luff ring, increase the bend on the end to form more of a hook shape
• Better quality forestay steel wire, Shorten the forestay wire length, use thinner copper clamp to clamping the top and bottom wire, prevent wire loop loose
• All sail corners, change from one layer patch per side to two layers patches to reinforce
• Change to better quality elasticated sheeting cord
• Included is the new 2025 winch servo for more accurate sails control

Specifications:

• Length: 655 mm
• Beam: 116.5 mm
• Rig Height: 915 mm
• Overall Height: 1338 mm
• RTR weight (no batteries): 1200 g
• Sail Area (main sail): 1460 cm2
• Sail Area (Jib): 766 cm2
• Sail Area (Total): 2226 cm2
• Hull material: Molded ABS with painted white finish and attached stickers

Included:

• Fully painted blow molded ABS hull
• 50 micron Mylar film racing sails with printed flow stripes and logos
• Extruded carbon fibre mast and boom tubes
• Extruded aluminium keel with zinc alloy ballast bulb
• Metal geared digital rudder servo and fast powerful sail winch
• Display stand

Not included:

• Transmitter, receiver & batteries
