O.S.Engine  |  Artikelnummer: OS18700 Producent varenr.: 18700  |  EAN: 89160526

MAX-105HZ 17.17cc 2-Stroke Heli Engine

2.579,30 kr

Få prismatch på MAX-105HZ 17.17cc 2-Stroke Heli Engine

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 3-5 dagar

Hämtning:

Ej i lager

På lager? Så afsender vi om:

Dag-til-dag levering

Dag-til-dag levering
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

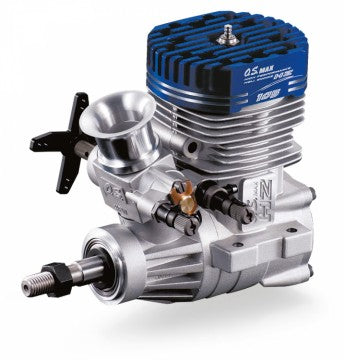

O.S. MAX-105HZ - 2-Stroke 17.17cc Helicopter Engine

The MAX-105HZ has been developed especially for 90-size helicopter models. It’s mounting geometry/size is the same as most conventional 90-size engines while the displacement is increased by 15%. Also conventional 90-size models gear ratios can be used with this engine without any modifications needed.

The new PowerBoost 105 silencer has been developed to match the 105HZ engine, while conventional 90-size silencers can also be used with the 105HZ.

A large velocity stack intakte is supplied with the engine to be installed on the 61E carburetor. Cool fresh air is conducted to the carburetor intake so that the engine can develop ideal power characteristics.

When the the governor function from Futaba GY-701 or GY-750 gyro is employed, the Futaba BPS-1 Back Plate Sensor can be installed in a cell on the back plate. By employing the governor function, a more stable flight can be achieved.

Specs:
  • Displacement: 17.17cc
  • Bore: 29mm
  • Stroke: 26mm
  • Practical RPM Range: 2.000-16.500RPM
  • Power Output: 3.65hp @ 15.000RPM
  • Weight: 596g

Forsendelse

Vi benytter GLS:

Pakkeshop: fra 35 kr.
Direkte til adresse: fra 59 kr.
Erhverv: fra 49 kr.

O.S.Engine

MAX-105HZ 17.17cc 2-Stroke Heli Engine

2.579,30 kr

O.S. MAX-105HZ - 2-Stroke 17.17cc Helicopter Engine

The MAX-105HZ has been developed especially for 90-size helicopter models. It’s mounting geometry/size is the same as most conventional 90-size engines while the displacement is increased by 15%. Also conventional 90-size models gear ratios can be used with this engine without any modifications needed.

The new PowerBoost 105 silencer has been developed to match the 105HZ engine, while conventional 90-size silencers can also be used with the 105HZ.

A large velocity stack intakte is supplied with the engine to be installed on the 61E carburetor. Cool fresh air is conducted to the carburetor intake so that the engine can develop ideal power characteristics.

When the the governor function from Futaba GY-701 or GY-750 gyro is employed, the Futaba BPS-1 Back Plate Sensor can be installed in a cell on the back plate. By employing the governor function, a more stable flight can be achieved.

Specs:
  • Displacement: 17.17cc
  • Bore: 29mm
  • Stroke: 26mm
  • Practical RPM Range: 2.000-16.500RPM
  • Power Output: 3.65hp @ 15.000RPM
  • Weight: 596g
