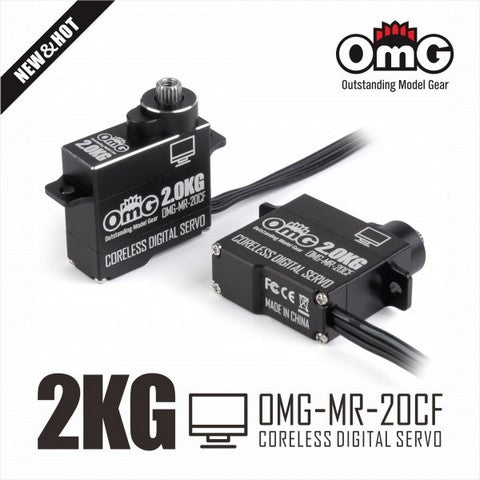

OMG MR-20CF - Micro Size 3kg Full Metal Programmable Coreless Digital Servo for MiNIZ 1/18 1/24 1/28 RC Cars (1 PCS)
Lagerstatus:
Ej i lagerHämtning:
Ej i lager
- Leverans inom några vardagar
- Frakt beräknas i kassan
-
Certifierad dansk webbutik (E-mærket)
- Enkel och säker betalning
-
Kan hämtas i vår butik i Nørresundby
Visa butiksinformation
Beskrivning
Beskrivning
Micro size 3kg full metal programmable coreless digital servo with JST1.5 connector plug for mini-z rc car Gear:Titanium 20T/Φ4.9mm
Dimension:20X8X18.8 Micro size (mm)
Item No.OMG-MR-20CF
Operating voltage:4.8-8.4V
Operating speed:
4.8V-0.072sec/60°
6.0V-0.065sec/60°
7.4V-0.055sec/60°
8.4V-0.050sec/60°
Stall torque:
4.8V-2.0kgf.cm(28oz-in)
6.0V-2.2kgf.cm(31oz-in)
7.4V-2.5kgf.cm(35oz-in)
8.4V-3.0kgf.cm(42oz-in)
Gear material:Titanium
Horn gear spline:20T Φ4.0
Size:20X8X18.8mm(0.79x0.31x0.74in)
Case material:Full metal
Weight:7g(0.25oz)
Bearing:Metal bearing
Motor type:Coreless
Operating temperature:-15℃~+70℃
Operating travel :≈180±10°
Neutral position :1520μsec
Frequency:1520uS
Refresh rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:60mm
Waterproof level:Dust & Water Splash Resistacne
Programmable:Yes
