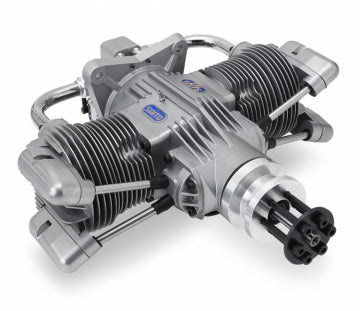

Saito FG-120TS - FG-120TS Twin 4-Cycle Gas Engine

Saito FG-120TS - Twin Cylinder 121.6cc Boxer Gas Engine

With it's displacement of 121.6cc the Saito FG-120TS is a powerful engine that is ideal for aerobatic models in the 70cc class as well as scale/semi-scale models in the 70-100cc class.

Specs:

• Displacement: 121.6cc
• Bore: 48.0mm (x2)
• Stroke: 33.6mm (x2)
• Engine Weight: 4030g
• Silencer Weight: 180g
• Ignition Weight: 160g
• Practical RPM range: 1000–6000
• Max on Ground RPM: Approx. 5500-6000
• Rec. Propeller size: 27×12" - 28×12"
• Applications: Airplane 70cc class/size, Scale Airplanes: 70-100cc class/size
• Rec. Ignition Battery: 6-12V, greater than 1500mA (2-3S Lipo or LiFe 20-25C)
• Plug: CM-6
• Engine mount included
• Rec. oil percentage in the gasoline fuel for run-in: 15:1 (6.25%)
• Rec. oil percentage in the gasoline fuel for a fully run-in engine: 15:1 to 20:1 (6.25-4.8%)

Fuel:

• The fuel is a mixture of regular gasoline or high-octane gasoline and high-quality 2-stroke engine oil
• Example of oil recommendations:
  • Klotz Original Techniplate KL200/KL205
  • Deluxe Materials PowerModel 2T-S
  • ENEOS RACING SPEC PRO-2T (SAITO STANDARD) etc.
• If such oils are not available in your country, then please ask the official SAITO distributor in your country for an alternative.
• Be sure to use the mixture: gasoline : oil = 15-20 : 1 -  by volume ratio. (Example 1000ml of gasoline should be mixed with more than 50ml of oil).
• During the break-in process, use 15:1 (6.25%) mixed fuel to ensure the best lubrication for initial running.
• Any damage caused by the fuel used, in which the oil ratio is lower than 20:1 (4.8%) will not be covered by warranty.
• Do not use gasoline containing ethanol. It may cause not only power loss but also corrosion inside the engine.
