Beskrivning

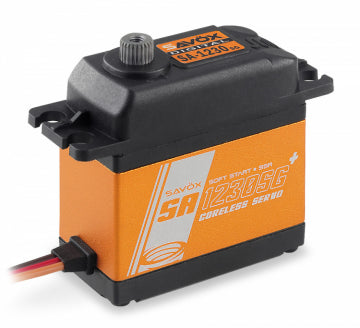

SAVÖX SA-1230SG PLUS - Coreless Steel-Geared High Torque Servo

The Savox SA-1230SG-PLUS Monster Torque Steel-Gear digital servo is the servo that is ideal for those requiring extra torque, but not using high voltage as a power source.

Features:
  • New: Soft Start
  • New: Sanwa SSR compatible
  • Extremely strong unique steel gears ensure long-life and durability
  • Ideal for steering on rock crawlers, monster trucks, and large scale aircraft
  • Slightly taller case design

Specifications:
  • Torque @ 4.8V: 30.0kg
  • Torque @ 6V: 36.0kg
  • Speed @ 4.8V: 0.20 sec/60 deg
  • Speed @ 6V: 0.16 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 44.9mm
  • Weight: 79g

Technical Details:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @4.8V, 250mA @6.0V
  • Stall Current (at locked): 4200mA @4.8V, 5300mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
