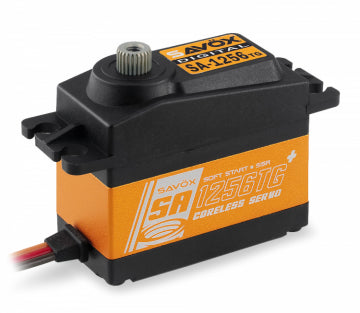

Savöx SA-1256TG PLUS - SA-1256TG Plus Servo 20Kg 0,15s Alu Coreless Titanium Gear

SAVÖX SA-1256TG PLUS - Coreless Titanium-Geared High Torque Servo

The SA-1256TG-PLUS servo is a high torque servo and is perfect for those who are looking for a minimized backlash to use on flying surfaces of RC planes.

Features:

• New: Soft Start
• New: Sanwa SSR Compatible
• Titanium gears ensure long life, durability & lighter weight
• Minimized backlash for precision aerobatic airplane use
• Aluminum middle case to help with cooler operating temperatures

Specifications:

• Torque @ 4.8V: 16kg/cm
• Torque @ 6V: 20kg/cm
• Speed @ 4.8V: 0.18 sec/60 deg
• Speed @ 6V: 0.15 sec/60 deg
• Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
• Weight: 64g

Technical Details:

• Operating Temperature: -10° - 50°C
• Running Current (no load): 100mA @4.8V, 120mA @6.0V
• Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
• Idle Current: 5mA @4.8V, 5mA @6.0V
• Wire Length: 200 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 ? 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 ? 2200 µ second
• Maximum Travel: Appx 130° (900 ? 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Coreless
