Savöx  |  Artikelnummer: SAV-SB2267SG Producent varenr.: SB-2267SG  |  EAN: 4,71001E+12

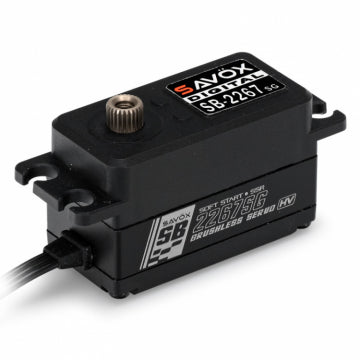

Savöx SB-2267SG - SB-2267SG Servo 23Kg 0.08s HV Alu Brushless Low Steel Gears

683,39 kr

Få prismatch på Savöx SB-2267SG - SB-2267SG Servo 23Kg 0.08s HV Alu Brushless Low Steel Gears

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 4-6 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

Savöx SB-2267SG - Monster Torque, High Voltage, Low Profile, Brushless, Steel Gear Servo

This powerful performance low profile servo from Savox utilize an aluminum middle case and super strong (and light) upper and lower composite plastic case case and a unique brushless motor & controller technology to boost power up to 35% over previous generation servos.

Tech Specifications:
  • Servo Technology: Digital High Voltage
  • Input Voltage: 6-8.4V
  • Motor Type: Brushless
  • Gear Material: Steel
  • Output Gear Spline: 25 Tooth
  • Bearings: 2 Ball Bearings
  • Connector type: JR
  • Case: Composite plastic top & bottom, aluminium middle
  • Torque @ 6.0V: 18kg/cm
  • Speed @ 6.0V: 0.10s/60deg
  • Torque @ 7.4V: 25kg/cm
  • Speed @ 7.4V: 0.08s/60deg
  • Torque @ 8.4V: 32kg/cm
  • Speed @ 8.4V 0.065s/60deg
  • Dimensions (LxWxH): 40.8x20.2x26.05mm
  • Weight: 57g
  • Operating Temperature: -10°to +50°C)
  • Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 4500mA @6.0V, 5600mA @7.4V, 6300mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
