Savöx  |  Artikelnummer: SAV-SB2272MG Producent varenr.: SB-2272MG  |  EAN: 4710006990033

Savöx SB-2272MG - SB-2272MG Servo 7Kg 0,032s HV Alu Brushless Metal Gear

524,88 kr

Få prismatch på Savöx SB-2272MG - SB-2272MG Servo 7Kg 0,032s HV Alu Brushless Metal Gear

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 3-5 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

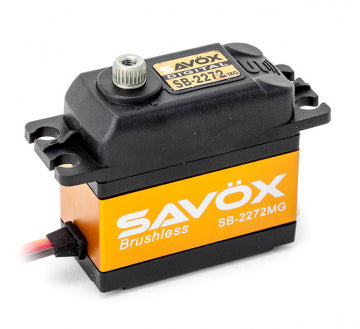

SAVÖX SB-2272MG - High Voltage Brushless Metal-Geared High Speed/Torque Servo

The Savox SB-2272MG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • High Voltage
  • Metal Gear train for extended life and durability
  • Brushless motor for smooth operation and efficiency
  • Ideal for helicopter use due to it's amazing speed

Specifications:
  • Torque @ 6V: 5kg/cm
  • Torque @ 7.4V: 7kg/cm
  • Speed @ 6V: 0.045 sec/60 deg
  • Speed @ 7.4V: 0.032 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 66g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
