Beskrivning

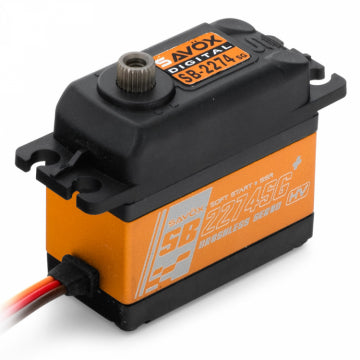

SAVÖX SB-2274SGPLUS - High Voltage Brushless Steel-Geared High Speed/Torque Servo

The Savox SB-2274SG Plus High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • New: Soft Start
  • High Voltage
  • Unique steel gear train
  • Brushless motor for smooth operation and efficiency
  • Ideal for 1/10, 1/8 buggies, and large scale aircraft

Specifications:
  • Torque @ 6V: 20kg/cm
  • Torque @ 7.4V: 25kg/cm
  • Torque @ 8.4V: 30kg/cm
  • Speed @ 6V: 0.105 sec/60 deg
  • Speed @ 7.4V: 0.08 sec/60 deg
  • Speed @ 8.4V: 0.07 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 69g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
