Savöx  |  Artikelnummer: SAV-SB2295SG Producent varenr.: SB-2295SG  |  EAN: 4710006994130

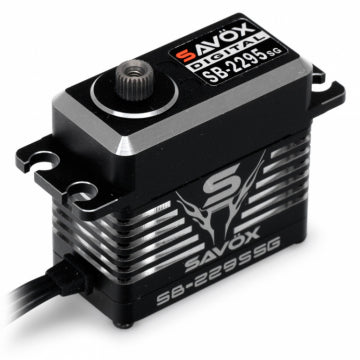

Savöx SB-2295SG - SB-2295SG Servo 32Kg 0,06s HV Alu Brushless

978,50 kr

Få prismatch på Savöx SB-2295SG - SB-2295SG Servo 32Kg 0,06s HV Alu Brushless

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 4-6 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

SAVÖX SB-2295SG - High Voltage Brushless Steel-Geared Monster Torque Servo

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos. Perfect when you need a powerful and very fast high voltage brushless servo with a aluminium case in application such as 3D helicopters etc.

Features:
  • High Voltage
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6V:
  • Torque @ 7.4V: 32kg/cm
  • Torque @ 8.4V: 40kg/cm
  • Speed @ 6V:
  • Speed @ 7.4V: 0.06sec/60 deg
  • Speed @ 8.4V: 0.05sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
  • Weight: 79g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.
