Savöx  |  Artikelnummer: SAV-SC0252MGPLUS Producent varenr.: SC-0252MG PLUS  |  EAN: 4710006994482

Savöx SC-0252MG PLUS - SC-0252MG Plus Servo 10,5Kg 0,19s Metal Gear

216,63 kr

Få prismatch på Savöx SC-0252MG PLUS - SC-0252MG Plus Servo 10,5Kg 0,19s Metal Gear

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 5-7 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

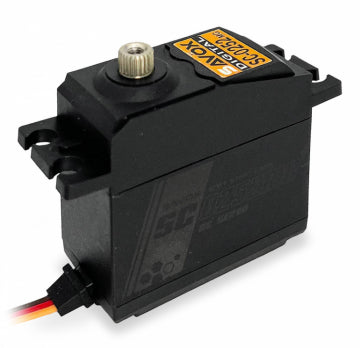

Savöx SC-0252MGPLUS - Standard Digital Servo with Soft Start 0.19s 10.5kg/cm @ 6.0V

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:
  • Soft Start
  • Sanwa SSR compatibility
  • Metal gear train ensures durability under harsh situations
  • Higher torque output than standard servos
  • Ideal for 30-60 size aircraft, and some car applications

Specifications:
  • Torque @ 4.8v: 7.2kg/cm
  • Torque @ 6v: 10.5kg/cm
  • Speed @ 4.8v: 0.23s/60deg
  • Speed @ 6v: 0.19s/60deg
  • Dimensions: L40.7 x W20 x H39.4mm
  • Weight: 49g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 300mA @4.8V, 330mA @6.0V
  • Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.

Savöx

Savöx SC-0252MG PLUS - SC-0252MG Plus Servo 10,5Kg 0,19s Metal Gear

216,63 kr

Savöx SC-0252MGPLUS - Standard Digital Servo with Soft Start 0.19s 10.5kg/cm @ 6.0V

The Savox SC-0252MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:
  • Soft Start
  • Sanwa SSR compatibility
  • Metal gear train ensures durability under harsh situations
  • Higher torque output than standard servos
  • Ideal for 30-60 size aircraft, and some car applications

Specifications:
  • Torque @ 4.8v: 7.2kg/cm
  • Torque @ 6v: 10.5kg/cm
  • Speed @ 4.8v: 0.23s/60deg
  • Speed @ 6v: 0.19s/60deg
  • Dimensions: L40.7 x W20 x H39.4mm
  • Weight: 49g
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 300mA @4.8V, 330mA @6.0V
  • Stall Current (at locked): 1400mA @4.8V, 1700mA @6.0V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 164° (800 ? 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
