Savöx SC-0254MG PLUS - SC-0254MG Plus Servo 7,2Kg 0,14s Metal Gear

Savox SC-0254MGPLUS - Standard Sized Digital Servo with Soft Start 0.14sec 7.2kg/cm @ 6V

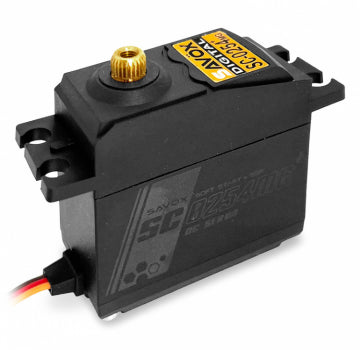

The Savox SC-0254MG Plus is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.

Features:

• Soft Start
• Sanwa SSR compatible
• Metal gear train ensures durability under harsh situations
• Higher torque output than standard servos
• Ideal for 30-60 size aircraft, and some car applications
• Leading edge digital servo technology
• Strong 3-Pole Brushed motor
• Accurate and fast response
• Fine resolution
• Composite case
• Ball bearings

Specifications:

• Torque @ 4.8v: 6.9kg/cm
• Torque @ 6v: 7.2kg/cm
• Speed @ 4.8v: 0.19s/60deg
• Speed @ 6v: 0.14s/60deg
• Dimensions: L40.7 x W20 x H39.4mm
• Weight: 49g
• Operating Temperature: -10° to 50°C
• Running Current (no load): 220mA @4.8V, 240mA @6.0V
• Stall Current (at locked): 1300mA @4.8V, 1500mA @6.0V
• Idle Current: 6mA @4.8V, 6mA @6.0V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 120° (1000 ? 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 ? 2200 µ second
• Maximum Travel: Appx 164° (800 ? 2200 µ second)
• Refresh Rate: 240 Hz
• Motor Type: Brushed
