Beskrivning

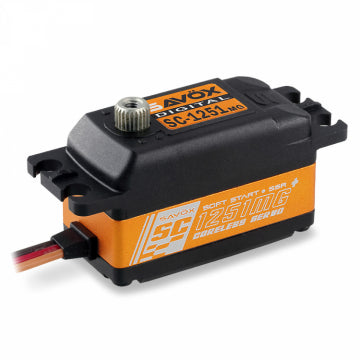

SAVÖX SC-1251MGPLUS - Metal-Geared Digital Low-Profile Servo - PLUS/V2

The SC-1251MG Plus is now updated with new software and is a high speed, low profile servo which combines leading edge technology with super high 12 bit (4096) resolution.

Features:
  • NEW! Softstart Function
  • NEW! Sanwa SSR compatible
  • Metal gear train ensures durability under harsh situations
  • Ideal for 1/10 on road vehicles and some boat applications
  • Aluminum case provides cooler operating temperatures

Specifications:
  • Voltage range: 4.8-6.6V
  • Torque @ 4.8V: 7kg/cm
  • Torque @ 6V: 9kg/cm
  • Speed @ 4.8V: 0.10 sec/60 deg
  • Speed @ 6V: 0.09 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 25.4mm
  • Weight: 44.5g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 2000mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 950 ? 2050 µ second
  • Maximum Travel: Aprox. 160° (700 ? 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Coreless
