Savöx  |  Artikelnummer: SAV-SC1258TGPLUS Producent varenr.: SC-1258TGPLUS  |  EAN: 4710006994185

Savöx SC-1258TGPLUS - SC-1258TG Plus Servo 12Kg 0,08s Alu Coreless Titanium Gear

509,63 kr

Få prismatch på Savöx SC-1258TGPLUS - SC-1258TG Plus Servo 12Kg 0,08s Alu Coreless Titanium Gear

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 5-7 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

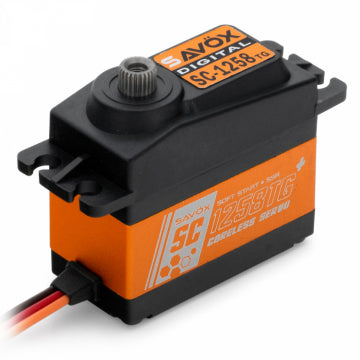

SAVÖX SC-1258TGPLUS - Titanium-Geared High-Speed Digital Standard-Sized Servo

Newly updated Savöx SC-1258TG Plus high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:
  • Softstart Function
  • Sanwa SSR compatible
  • Coreless motor
  • Extremely strong titanium gears ensure long-life, durability and light weight
  • Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
  • Aluminum middle case allows for cooler operating temperatures

Specifications:
  • Torque @ 6V: 12kg/cm
  • Speed @ 6V: 0.08 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 64g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.

Savöx

Savöx SC-1258TGPLUS - SC-1258TG Plus Servo 12Kg 0,08s Alu Coreless Titanium Gear

509,63 kr

SAVÖX SC-1258TGPLUS - Titanium-Geared High-Speed Digital Standard-Sized Servo

Newly updated Savöx SC-1258TG Plus high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:
  • Softstart Function
  • Sanwa SSR compatible
  • Coreless motor
  • Extremely strong titanium gears ensure long-life, durability and light weight
  • Ideal for CCPM on 600 and 700 class heli & steering servo on 1/10 scale buggies
  • Aluminum middle case allows for cooler operating temperatures

Specifications:
  • Torque @ 6V: 12kg/cm
  • Speed @ 6V: 0.08 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 64g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
