Savöx  |  Artikelnummer: SAV-SH1290MGPLUS Producent varenr.: SH-1290MG PLUS  |  EAN: 46725710

Savöx SH-1290MG PLUS - SH-1290MG Plus Servo 5Kg 0,05s Alu Coreless Metal Gear

430,00 kr

Få prismatch på Savöx SH-1290MG PLUS - SH-1290MG Plus Servo 5Kg 0,05s Alu Coreless Metal Gear

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 4-6 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

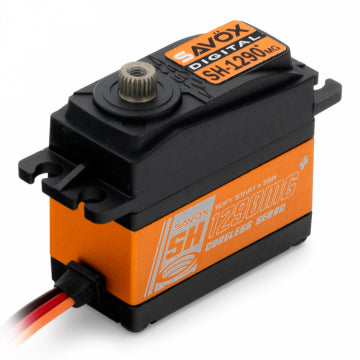

SAVÖX SH-1290MGPLUS - Metal-Geared Super-Fast Standard-Sized Servo

The Savox SH-1290MG Plus is a super-speed, metal-gear, digital servo that is extremely fast.

Features:
  • Soft Start
  • SSR compatible
  • Coreless motor
  • Metal gear train ensures durability and longevity
  • Extremely fast for quick response
  • Aluminum middle case allows for cooler operating temperatures
  • Ideal as a rudder servo on 500, 600, and 700 class helicopters
  • Dual ball bearing support

Specifications:
  • Torque @4.8V: 4kg/cm
  • Torque @6V: 5kg/cm
  • Speed @4.8V: 0.06 sec/60 deg
  • Speed @6V: 0.05 sec/60 deg
  • Dimensions L x W x H: 40.3 x 20.2 x 37.2mm
  • Weight: 56.4g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 200mA @4.8V, 250mA @6.0V
  • Stall Current (at locked): 2400mA @4.8V, 3000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 300 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1520 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 154° (800 ? 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.
