Savöx  |  Artikelnummer: SAV-SV0235MGPLUS Producent varenr.: SV-0235MG PLUS  |  EAN: 48134734

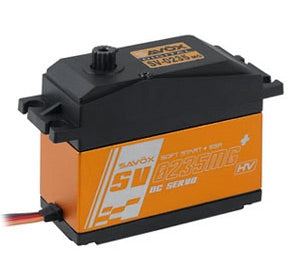

Savöx SV-0235MG PLUS - SV-0235MG Plus Servo 35Kg 0,15s HV Alu Metal Gear Giant

503,11 kr

Få prismatch på Savöx SV-0235MG PLUS - SV-0235MG Plus Servo 35Kg 0,15s HV Alu Metal Gear Giant

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 5-7 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

SAVÖX SV-0235MGPLUS - Metal-Geared Giant-Scale High Voltage Servo

The SW0235MG Plus is a metal-geared, and digital servo. It is a fast large scale servo and capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Good torque and speed for a nice balance

Specifications:
  • Torque @6V: 28kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.18 sec/60 deg
  • Speed @7.4V: 0.15 sec/60 deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.

Savöx

Savöx SV-0235MG PLUS - SV-0235MG Plus Servo 35Kg 0,15s HV Alu Metal Gear Giant

503,11 kr

SAVÖX SV-0235MGPLUS - Metal-Geared Giant-Scale High Voltage Servo

The SW0235MG Plus is a metal-geared, and digital servo. It is a fast large scale servo and capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Good torque and speed for a nice balance

Specifications:
  • Torque @6V: 28kg/cm
  • Torque @7.4V: 35kg/cm
  • Speed @6V: 0.18 sec/60 deg
  • Speed @7.4V: 0.15 sec/60 deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Technical Details:
  • Operating Temperature: -10° to 50°C
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 7500mA @6.0V, 9000mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
Visa produkt
