Savöx  |  Artikelnummer: SAV-SV0236MGPLUS Producent varenr.: SV-0236MG PLUS  |  EAN: 49117774

Savöx SV-0236MG PLUS - SV-0236MG Plus Servo 40Kg 0,17s HV Alu Metal Gear Giant

503,11 kr

Få prismatch på Savöx SV-0236MG PLUS - SV-0236MG Plus Servo 40Kg 0,17s HV Alu Metal Gear Giant

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 4-6 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

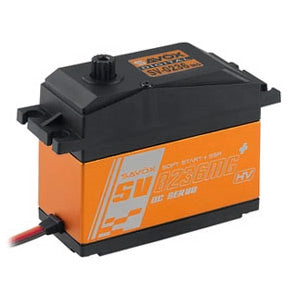

SAVÖX SV-0236MGPLUS - High Voltage 1/5 Scale Servo

The SV-0236MG Plus is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Extremely high torque output
  • Capable of operating on high voltage

Specifications:
  • Torque @6v: 30kg
  • Torque @7.4v: 40kg
  • Speed @6v: 0.21sec/60deg
  • Speed @7.4v: 0.17sec/60deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Tech Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.

Savöx

Savöx SV-0236MG PLUS - SV-0236MG Plus Servo 40Kg 0,17s HV Alu Metal Gear Giant

503,11 kr

SAVÖX SV-0236MGPLUS - High Voltage 1/5 Scale Servo

The SV-0236MG Plus is a large scale, and digital servo. It is metal-geared with an amazing amount of torque while capable of operating on high voltage.

Features:
  • Soft Start
  • SSR compatible
  • High Voltage
  • Ideal for 1/5 scale off road and large scale aircraft applications
  • Strong metal gear train for added durability
  • Extremely high torque output
  • Capable of operating on high voltage

Specifications:
  • Torque @6v: 30kg
  • Torque @7.4v: 40kg
  • Speed @6v: 0.21sec/60deg
  • Speed @7.4v: 0.17sec/60deg
  • Dimensions L x W x H: 65.8 x 30.0 x 57.4mm
  • Weight: 200g

Tech Details:
  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @6.0V, 180mA @7.4V
  • Stall Current (at locked): 4600mA @6.0V, 5700mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 15 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
