Savöx  |  Artikelnummer: SAV-SW2290SG Producent varenr.: SW-2290SG  |  EAN: 4,71001E+12

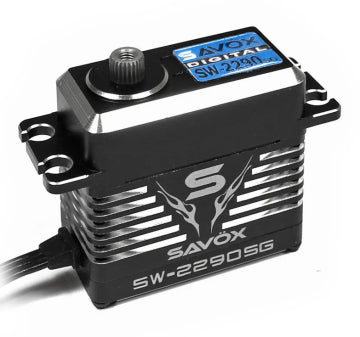

Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

994,03 kr

Få prismatch på Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

Har du hittat varan billigare hos en annan återförsäljare? Klistra in länken här nedanför, så får du snabbt svar på om vi kan matcha priset. Vi tittar på totalpriset — alltså inkl. frakt, tull och avgifter — och varan bör finnas i lager hos dem. Vi matchar om vi kan. Läs villkoren här.

Lagerstatus:

I lager hos leverantör - beställ nu, levereras om 4-6 dagar

Hämtning:

Ej i lager

I lager? Då skickar vi om:

Snabb leverans från vårt lager i Danmark

Snabb leverans från vårt lager i Danmark
  • Dankort
  • MobilePay
  • Visa
  • Mastercard
  • EAN betaling
  • Leverans inom några vardagar
  • Frakt beräknas i kassan
  • Certifierad dansk webbutik (E-mærket)
  • Enkel och säker betalning
  • Kan hämtas i vår butik i Nørresundby
     Visa butiksinformation

Beskrivning

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6v: 45kg
  • Torque @ 7.4v: 55kg
  • Torque @ 8.4v: 70kg
  • Speed @ 6v: 0.16s/60°
  • Speed @ 7.4v - 0.13s/60°
  • Speed @ 8.4v - 0.11s/60°
  • Dimensions L x W x H: 41 x 21 x 39.9mm
  • Weight: 81g

Technical:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

Frakt

Vi skickar med GLS från vårt lager i Danmark.

Frakten beräknas i kassan.

Savöx

Savöx SW-2290SG - SW-2290SG Servo 70Kg 0,11s HV Alu Brushless Steel Gear WP

994,03 kr

SAVÖX SAV-SW2290SG - Waterproof Monster Torque High Voltage, Brushless, Digital Servo 0.11s / 70kg/cm @ 8.4v

The powerful "Monster" performance series from Savox utilize an all aluminum case, unique brushless motor and controller technology to boost power up to 35% over previous generation servos.

Features:
  • Waterproof (IP67)
  • Full Aluminum Case
  • 3 Precision Ball Bearings
  • Unique steel gears

Specifications:
  • Torque @ 6v: 45kg
  • Torque @ 7.4v: 55kg
  • Torque @ 8.4v: 70kg
  • Speed @ 6v: 0.16s/60°
  • Speed @ 7.4v - 0.13s/60°
  • Speed @ 8.4v - 0.11s/60°
  • Dimensions L x W x H: 41 x 21 x 39.9mm
  • Weight: 81g

Technical:
  • Operating Temperature: -10° - 50°C
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V, 220mA @8.4V
  • Stall Current (at locked): 7500mA @6.0V, 9200mA @7.4V, 10500mA @8.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 ? 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 ? 2200 µ second
  • Maximum Travel: Appx 130° (900 ? 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
