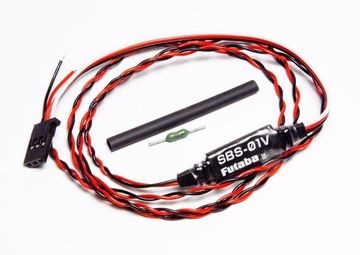

SBS-01V Voltage Telemetry Sensor (0-100V) S.BUS2
387,00 kr
Pris per st
/
Inte tillgänglig
Lagerstatus:
Ej i lagerHämtning:
Ej i lager
- Leverans inom några vardagar
- Frakt beräknas i kassan
-
Certifierad dansk webbutik (E-mærket)
- Enkel och säker betalning
-
Kan hämtas i vår butik i Nørresundby
Visa butiksinformation
Beskrivning
Beskrivning
This SBS-01V Voltage Sensor is used in conjunction with a telemetry enabled transmitter/receiver, is used to indicate the voltage of the item to which it is attached.
Although the telemetry receiver of Futaba's has a function which measures voltage, if SBS-01V is used, it can measure more battery voltage. To maximize your enjoyment, and to ensure proper sensing, please read through this manual thoroughly.
SBS-01V measures two voltage. One corresponds to high voltages, such as a drive battery, with an EXT line. However, processing shown in the next is required. Another is a normal line and is measurement of the battery for receivers of a line connected to 3P connector, or the battery for servos.
Although the telemetry receiver of Futaba's has a function which measures voltage, if SBS-01V is used, it can measure more battery voltage. To maximize your enjoyment, and to ensure proper sensing, please read through this manual thoroughly.
SBS-01V measures two voltage. One corresponds to high voltages, such as a drive battery, with an EXT line. However, processing shown in the next is required. Another is a normal line and is measurement of the battery for receivers of a line connected to 3P connector, or the battery for servos.
- Use : Voltage sensor
- Range [EXT line Voltage] 0.0 - 100.0V
- Range [Normal line Voltage] 3.5V - 8.4V (It measures to the first decimal place)
- Length: 870 mm
- Weight: 6.0 g
- Voltage: DC 3.7-7.4V
