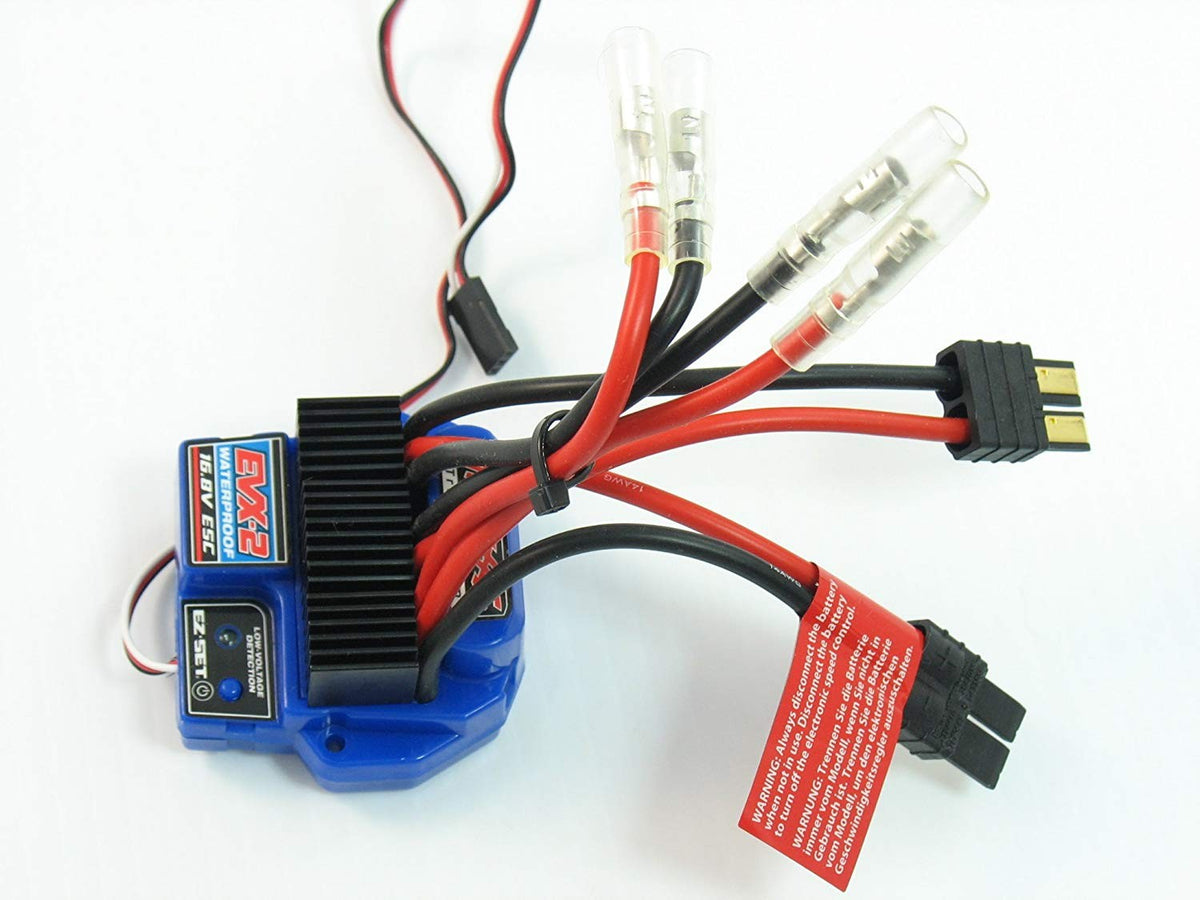

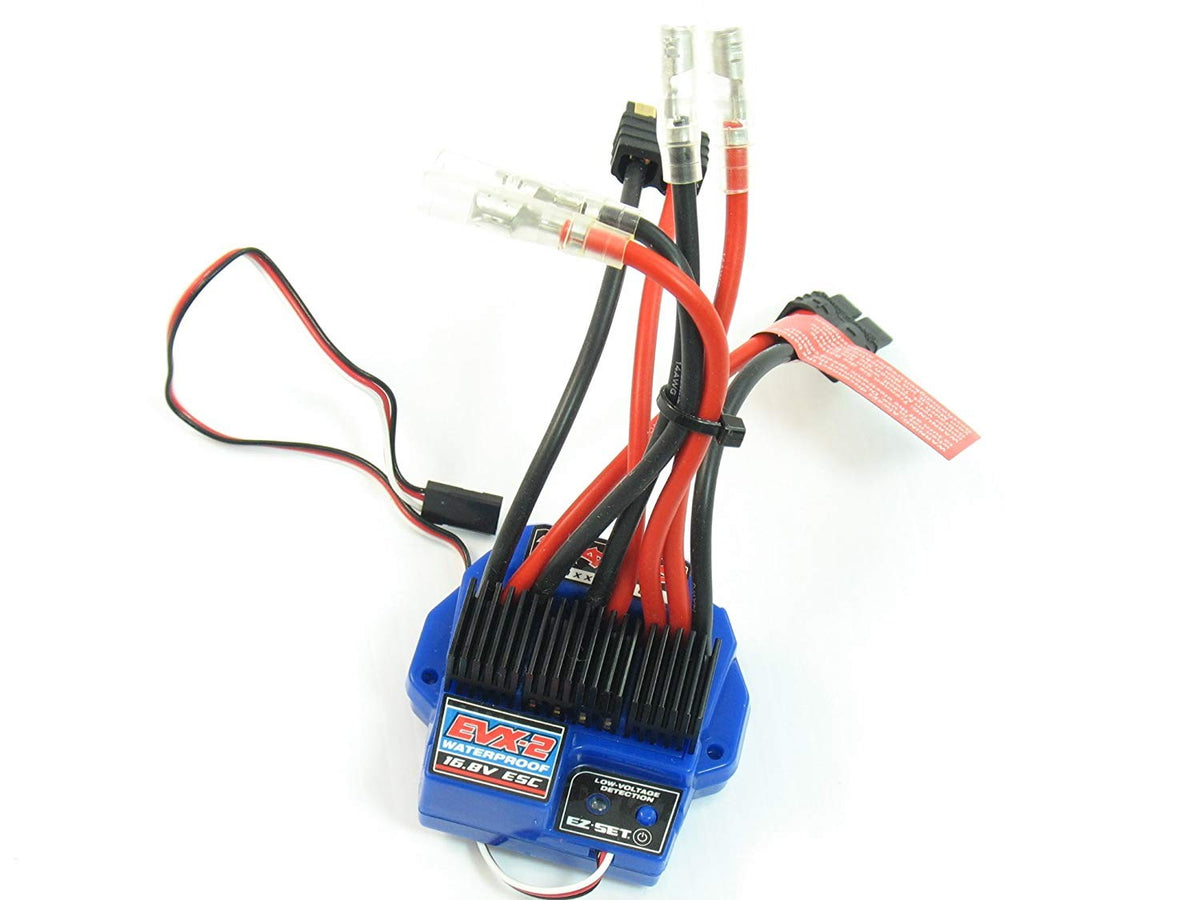

Traxxas 3019 16.8V EVX-2 ESC Waterproof

Traxxas 3019 16.8V EVX-2 ESC Waterproof

For: Traxxas chassis
Blue case with black anodized heatsink fins
Traxxas high-current connectors
EZ-set push button setup
Three programmable drive profiles
Thermal shutdown protection
16.8 volts of power
Microprocessor controlled
Patent-pending training mode

Specification:

• Type: Brushed
• Input Voltage: 6-14 cells (7.2-16.8 volts DC)
• Case Size: 2.27"W x 2.00"D x 1.05"H (58 x 51 x 27mm)
• Weight (heat sinks/no heat sinks): 4.1 oz (116g) / 3.6 oz (102g)
• Motor Limit (550 size): 19 turns (molex)/12 turns (High-Current Connectors)
• On-Resistance (Forward & Reverse): .004 ohms
• Rated Current (Forward & Reverse): 180A
• Braking Current: 360A
• Continous Current: 30A
• BEC Voltage: 6 volts DC
• BEC Current: 2.5A
• Power Wire: 14 gauge/3" (76mm)
• Input Harness Wire: 26 Gauge/9.5" (241mm)
• Transistor Type: MOSET
• PWM Frequency: 1700 Hertz
• Protection: Thermal Shutdown
