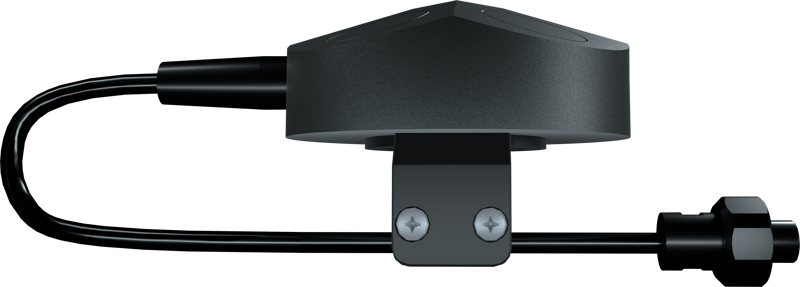

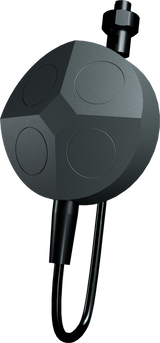

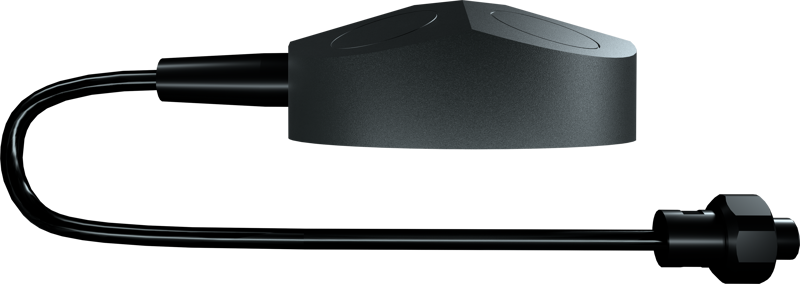

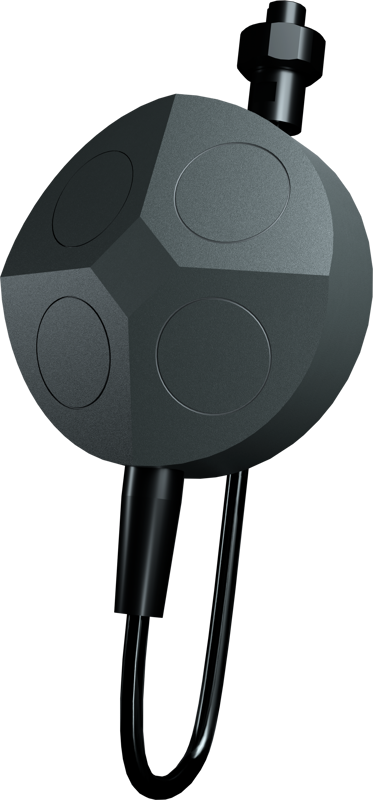

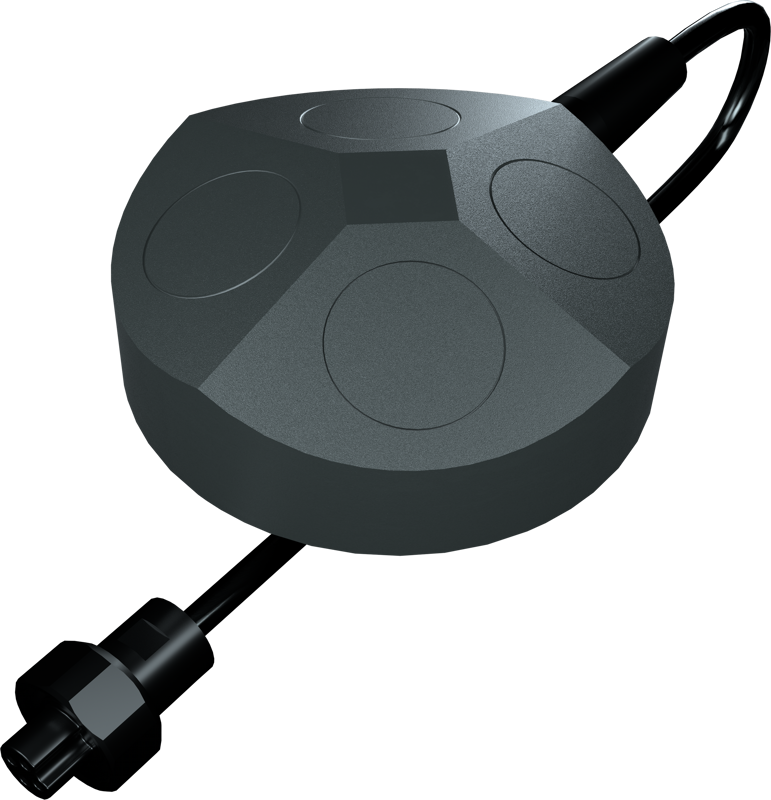

WaterLinked DVL kit for M2 Pro

CHASING Waterlinked DVL Kit is a doppler velocity log accessory suite developed for CHASING M2 PRO. Waterlinked DVL is the world's smallest DVL by far.

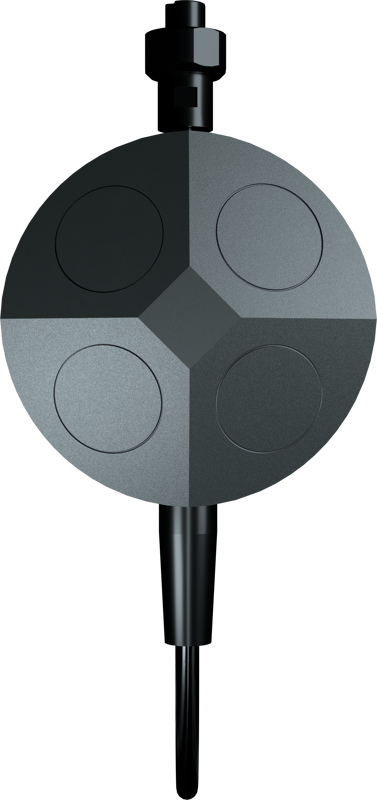

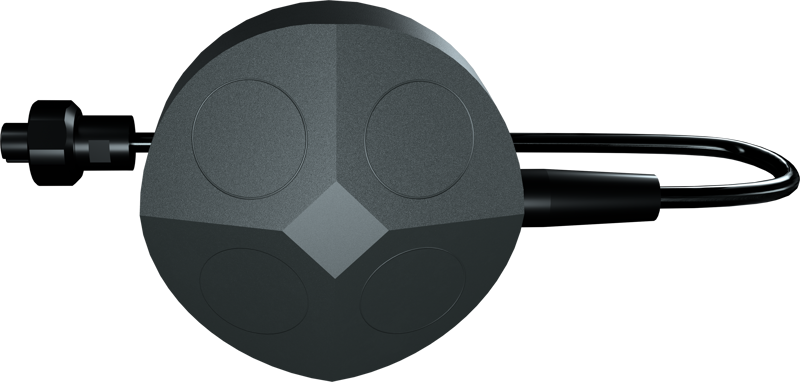

It has attributes of high-performance, ultra-small 4 beam setup, Integrated AHRS /IMU, open interface protocol and low cost.

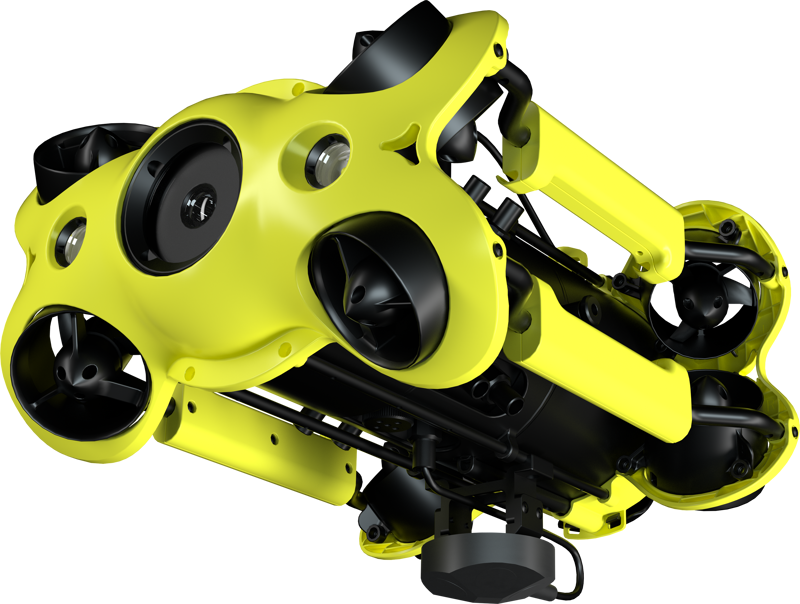

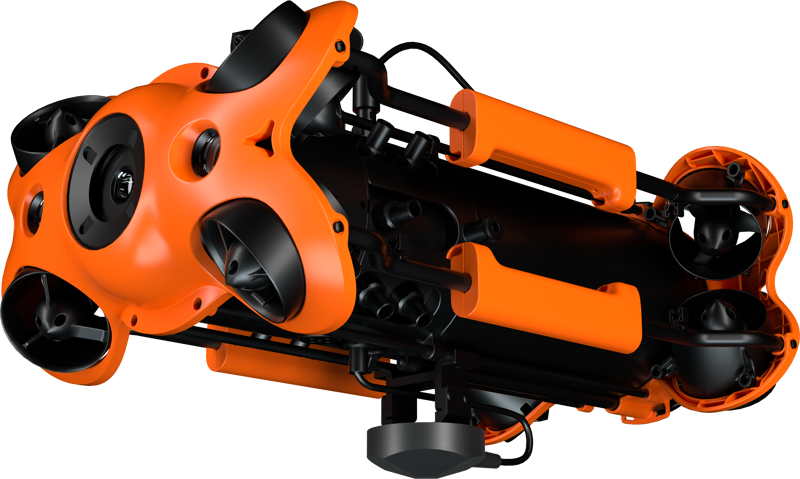

ROVs that have mounted** CHASING Waterlinked DVL** kits can carry out missions without being disturbed by the complicated underwater environment. With the assistance of a DVL, ROVs can perform hovering, fixed-point location, and position correction, ensuring the ROV navigates accurately.
**CHASING Waterlinked DVL kit **can meet the needs of advanced application scenarios, assisting the exploration of unknown waters.

Please make sure you have the latest version of the Go app and also update the drone to the latest firmware. If older versions are used the DVL kit will not work properly.

Software Update:

• Update GO1 APP to the latest version in app store.

Firmware Update:

• Connect the drone to the latest GO1 APP.
• GO1 App will identify automatically if the firmware(ROV and Docking Station) is the latest version. If not, there will be a prompt in the app which says how to upgrade the firmware.

After completing the above steps, GO1 APP can automatically recognize DVL. Specifications:
Transducer frequency 1 MHz
Transducer beam angle 22.5 degrees
Maximum velocity 3.75m/s
300m water-proof
Velocity resolution 0.1 mm/s
Long-term accuracy ±1.01 % ±0.1 % Can **not **work simultaniusly together with CHASING Distance Lock Sonar - 117424
